The CY8C4146LWE-HVS115 device is a product in the PSoC™ 4 HVS-64K series of microcontrollers (MCUS) launched by Infineon. This MCU is based on the 32-bit ARM Cortex-M0+ processor and combines programmable analog and digital modules. Designed specifically for automotive applications.

Main specifications

Core processor: ARM® Cortex®-M0+

Kernel specification: 32-bit

Speed: 48MHz

Connection capabilities: I2C, LINbus, SPI, UART/USART

Peripherals: Undervoltage detection/reset, capacitive sensing, DMA, POR, PWM, WDT

I/O number: 41

Program storage capacity: 64KB (64K x 8)

Program memory type: Flash memory

EEPROM capacity: -

RAM size: 8K x 8

Voltage - Power supply (Vcc/Vdd) : 2.7V to 5.15V

Data converter: A/D 16x12b SAR

Oscillator type: Internal

Operating temperature: -40°C to 125°C (TA)

Grade: Automotive grade

Qualification: AEC-Q100

Installation type: Surface mount, wettable side wing

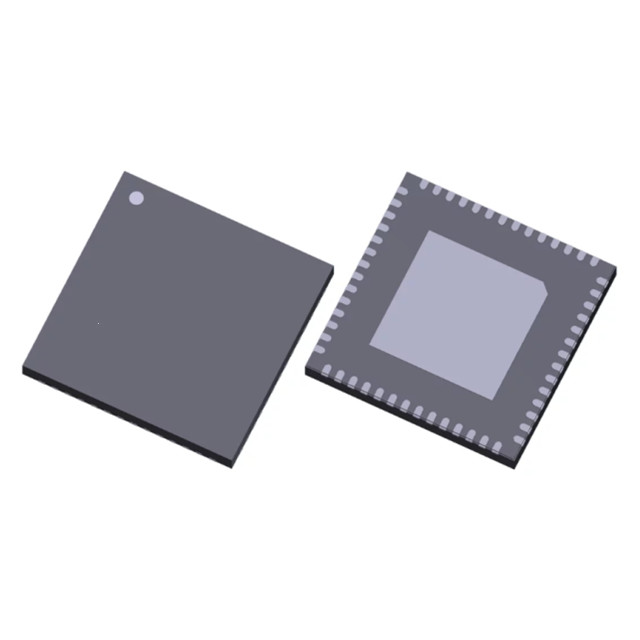

Device package: 56-WQFN (8x8)

The CY8C4146LWE-HVS115 microcontroller features a 12-bit SAR ADC, 5th generation CAPSENSE ™ for capacitive sensing, digital peripherals such as PWM, serial communication interface and integrated LIN PHY. Its high-voltage subsystem can be directly powered by a 12V automotive battery, making it an ideal choice for a powerful automotive solution.

Typical applications

The CY8C4146LWE-HVS115 MCU is suitable for automotive electronic control systems, industrial automation and other fields, such as body control, power management, etc.
