The CY8C4147LWE-HVS035 PSOC ™ HVMS-128K microcontroller is part of the PSOC ™ 4 HV mixed-signal series and is a programmable embedded system suitable for automotive HMI, body and powertrain applications. The CY8C4147LWE-HVS035 integrates an Arm ® Cortex ® -M0+ processor, programmable analog/digital modules, a 12-bit SAR ADC, 5th generation CAPSENSE ™, PWM, serial communication interface and integrated LIN PHY. Its high-voltage subsystem enables direct power supply from a 12V automotive battery, making it an ideal choice for automotive solutions.

Core parameters

Core processor: ARM® Cortex®-M0+

Kernel specification: 32-bit

Speed: 48MHz

Connection capabilities: FIFO, I2C, IrDA, LINbus, Microwire, smart card, SPI, SSP, UART/USART

Peripherals: power-off detection/reset, DMA, POR, PWM, temperature sensor, WDT

I/O number: 41

Program storage capacity: 128KB (128K x 8)

Program memory type: Flash memory

EEPROM capacity: 16K x 8

RAM size: 16K x 8

Voltage - Power supply (Vcc/Vdd) : 3.6V to 28V

Data converter: A/D 24x12b SAR

Oscillator type: Internal

Operating temperature: -40°C to 125°C (TA)

Grade: Automotive grade

Qualification: AEC-Q100

Installation type: Surface mount, wettable side wing

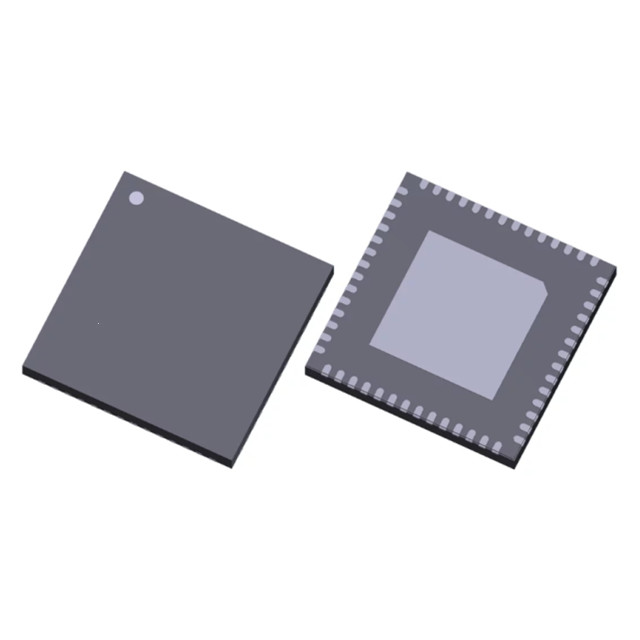

Device package: 56-WQFN (8x8)

Target application

The CY8C4147LWE-HVS035 MCU is suitable for applications such as PTC heaters, liquid level sensing, automotive access control, automotive human-machine interfaces, and Wheatstone bridge sensors.
