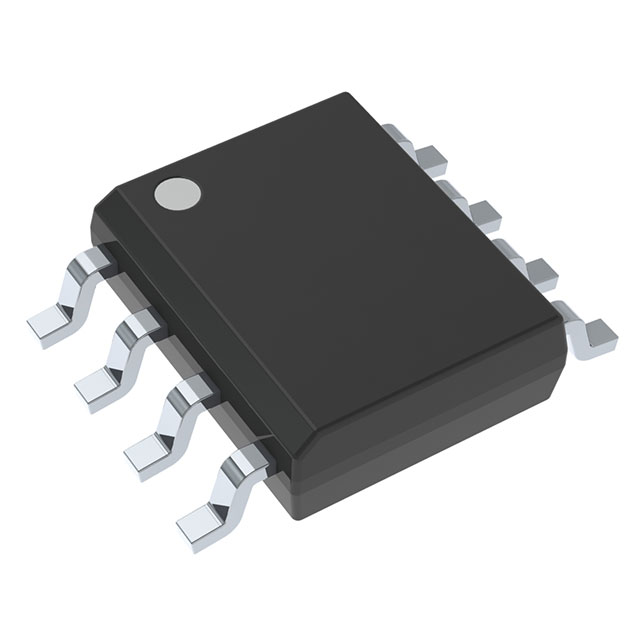

UCC57102WDR: 3A, high-speed, low-side gate driver, SOIC-8

Model: UCC57102WDR

Package: SOIC-8

Type: Low-side gate driver

The UCC57102WDR is a single-channel, high-performance low-side IGBT/SiC gate driver suitable for high-power automotive applications such as PTC heaters, traction inverter active discharge circuits, and other auxiliary subsystems. It provides multiple protection features including under-voltage lockout (UVLO), desaturation protection (DESAT), fault reporting, and thermal shutdown protection.

UCC57102WDR Product Features:

Typical 3A sink current, 3A source current output

DESAT protection with programmable delay

Soft shutdown upon fault occurrence

Absolute maximum VDD voltage: 30V

Input and enable pins withstand voltages down to –5V

Strict UVLO threshold enabling bias flexibility

Typical propagation delay: 26ns

Self-protecting driver with thermal shutdown

Wide bias voltage range

5mm x 4mm SOIC-8 package

Operating junction temperature range: –40°C to 150°C

UCC57102WDR Applications:

Hybrid/Electric Vehicle PTC Heaters

Traction Inverters

Home EV Chargers

Motor Drives

HVAC Compressors
