DRV81008QPWPRQ1: Automotive-grade 40V, 330mA, 8-channel low-side driver, HTSSOP-24

Product Details:

Model: DRV81008QPWPRQ1

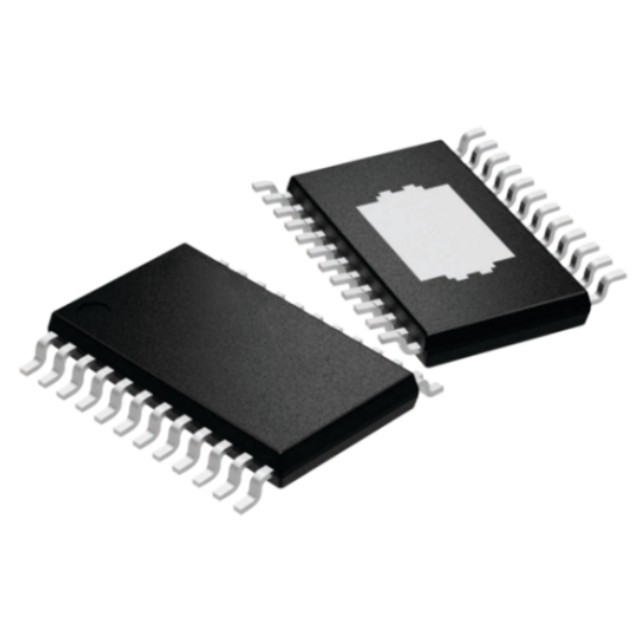

Package: HTSSOP-24

Type: Low-side driver

Overview:

The DRV81008QPWPRQ1 is an eight-channel low-side driver integrating protection and diagnostic features. It is designed to control relays in automotive and industrial applications. Each low-side switch in the DRV81008QPWPRQ1 has a 700mΩ on-resistance. When all eight channels are simultaneously turned on, the device can deliver 330mA current per output. Integrated clamping circuits on each output dissipate stored energy during the turn-off of inductive loads.

DRV81008QPWPRQ1 Product Attributes:

Switch Type: Relay, Solenoid Driver

Number of Outputs: 8

Ratio - Input:Output: 1:8

Output Configuration: Low-Side

Output Type: N-Channel

Interface: SPI

Voltage - Load: 3V to 40V

Voltage - Supply (Vcc/Vdd): 3V to 5.5V

Current - Output (Max): 330mA

On-Resistance (Typical): 700 milliohms

Input Type: Non-inverting

Features: Controlled slew rate

Operating Temperature: -40°C to 125°C (TA)

Mounting Type: Surface Mount

Supplier Device Package: 24-HTSSOP

Package/Case: 24-PowerTSSOP (0.173", 4.40mm Width)

DRV81008QPWPRQ1 Product Features:

3V to 40V analogue power supply voltage

Start-up voltage as low as 3V

Compliant with LV124 automotive standard

3V to 5.5V digital supply voltage

Compatible with 3.3V and 5V microcontrollers

Minimum drain-source clamp voltage of 42V

RDS(ON): Typical value of 700mΩ at 12V, 25°C

Current: 330mA per output at 85°C (all channels active)

Two parallel inputs with mapping capability

Fail-safe activation in limp-home mode

Utilises nSLEEP and IN pins

Low-current sleep mode

< 3µA when TJ ≤ 85°C using nSLEEP pin
