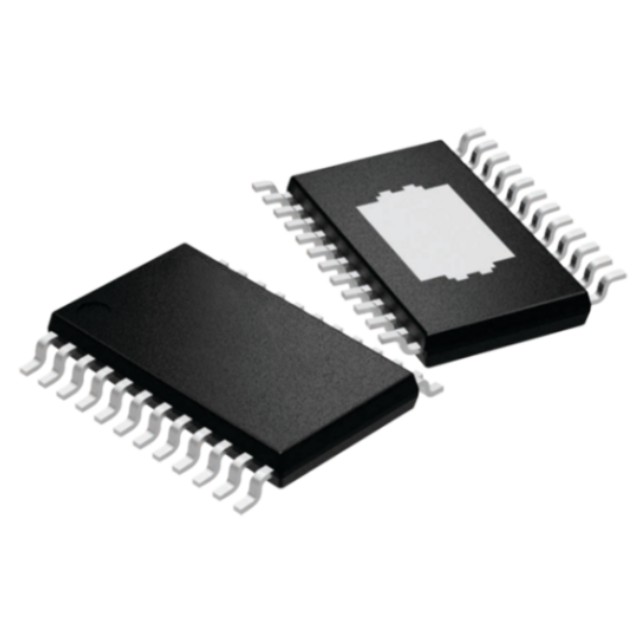

DRV81080QPWPRQ1 is an 8-channel high-side driver with protection and diagnostic features. This device is designed for controlling relays, LEDs, lamps, and motors. It supports various protection features such as under-voltage, over-voltage, short-circuit, and open-load detection. The DRV81080QPWPRQ1 offers high integration with embedded protection and diagnostics, making it ideal for automotive body and powertrain applications.

DRV81080QPWPRQ1 Product Attributes:

Switch Type: Relay, Solenoid Driver

Number of outputs: 8

Ratio - Input:Output: 2 x 1:4

Output configuration: High-side

Output type: N-channel

Interface: PWM, SPI

Voltage - Load: 3V to 40V

Voltage - Supply (Vcc/Vdd): 3V to 5.5V

Current - Output (maximum): 330mA

On-Resistance (Typical): 700 mΩ

Input Type: Non-Inverting

Features: Controlled Slew Rate

Fault Protection: Current Limit (Fixed), Open Load Detection, Over-Temperature, Over-Voltage, Reverse Battery, Reverse Current, Short Circuit, UVLO

Operating Temperature: -40°C to 125°C (TA)

Mounting Type: Surface Mount

Supplier Device Package: 24-HTSSOP

Package/Case: 24-PowerTSSOP (0.173", 4.40mm width)

DRV81080QPWPRQ1 Product Features:

3V to 40V analogue power supply voltage

Start-up voltage as low as 3V

Supports LV124 automotive standard

3V to 5.5V digital power supply voltage

Compatible with 3.3V and 5V microcontrollers

Maximum source-to-ground clamping voltage of -18V

Two independent battery feeds (VM1, VM2)

Each pin serves as the drain for four high-side channels

RDS(ON): Typical value of 700mΩ at 12V, 25°C

Current: 330mA per output at 85°C (all channels active)

Two parallel inputs with mapping capability

Fail-safe activation in limp-home mode

Utilises nSLEEP and IN pins

Two independent internal PWM generators

Bulb Inrush Mode (BIM) for driving luminaires

Suitable for 2W/5W lamps and other capacitive loads

Low-current sleep mode: < 3µA when TJ ≤ 85°C
