Service Telephone:86-755-83294757
Trade Name:Gate Drivers
Brand:INFINEON
Particular Year:25+

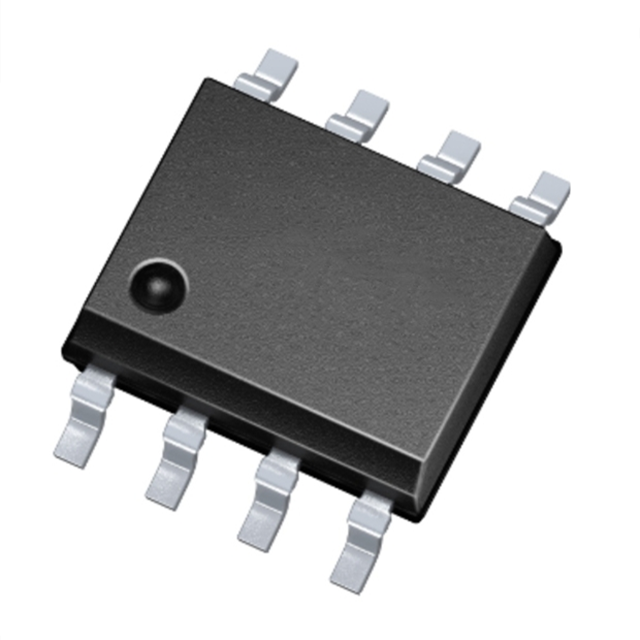

Package:PG-DSO-8
Delivery Date:New and original
Stock: 3000pcs
The 2ED2106S06F is a 650 V high-side and low-side high-speed power MOSFET and IGBT gate driver. It is packaged in DSO-8 and features a typical source current of 0.29A and a sink current of 0.7A.
Based on Infineon's SOI technology, it has excellent durability and anti-interference performance against the negative transient voltage of the VS pin. The 2ED2106S06F does not adopt a parasitic thyristor structure, so there is no parasitic latch-up effect under any temperature and voltage conditions.
The features of 2ED2106S06F include:
The operating voltage (VS node) is as high as + 650 V
VS negative transient immunity 100 V
The integration of ultra-fast, low-resistance bootstrap diodes reduces the bill of materials cost
Floating channel, used for bootstrap operation
Maximum power supply voltage: 25 V
Both channels have independent under-voltage locking (UVLO).
Propagation delay: 200 ns
HIN, LIN logical input
The logical operation of the VS pin is as high as -11 V
Input negative voltage tolerance: -5 V
Floating channels can be used to drive N-channel MOSFETs, SiC MOSFETs or IGBTs with high-side configurations
Model
Brand
Package
Quantity
Describe
INFINEON
PG-DSO-8
2500
1200 V, 4 A single-channel gate driver with separate output and short circuit clamping
INFINEON
SOT23-6
3000
Single-channel high-side and low-side gate driver with high-CMR TDI inputs
