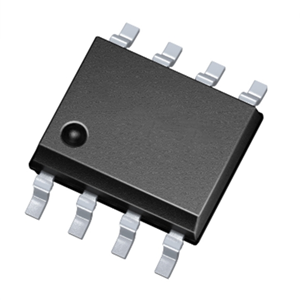

Commodity Model:1EDI40I12AF

Trade Name:Isolated Gate Drivers

Brand:INFINEON

Particular Year:25+

Package:PG-DSO-8

Delivery Date:New and original

Stock: 2500pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
INFINEON
Model
1EDI40I12AF
Package
PG-DSO-8
Describe
1200 V, 7.5 A single-channel isolated gate driver IC

Product Description

The 1EDI40I12AF is a 1200V, 7.5A single-channel isolated gate driver in the EiceDRIVER™ Compact series ‌. This device has the following main characteristics:

EiceDRIVER™ Compact single-channel isolated gate driver series

Applicable to 600 V, 650 V, 1200 V IGBTs, SiC and Si MOSFETs

Current isolation coreless transformer gate driver

Peak output current of typical injection current and pull current of 7.5A

The absolute maximum output power supply voltage is 40 V

300 ns propagation delay, 240 ns input filter

High common-mode transient immunity (CMTI) >100 kV/μs

Independent origin and indoctrination

Short-circuit clamping and active shutdown

DSO-8 150 mil narrow-body package, with a creepage distance of 4 mm

10.5V / 12.7V undervoltage locking (UVLO) protection with hysteresis

Youdaoplaceholder0 The application fields of 1EDI40I12AF ‌ include motor control and drivers, servo motor drive and control, switching mode power supplies (SMPS), and uninterruptible power supplies (UPS), etc. Youdaoplaceholder2.


Product advantages of 1EDI40I12AF

Integrated filters reduce the need for external filters.

Suitable for working in high ambient temperatures and quick switching applications.

There is no need to adjust the signal voltage level between the μController and the driver.

Active shutdown to ensure that the IGBT is in a safe off state when the output chip is not connected to the power supply.

Short-circuit clamp to limit the gate voltage during a short circuit.


Associated Products

Model

Brand

Package

Quantity

Describe

2EDL05I06PF

INFINEON

PG-DSO-8

2500

600 V half-bridge gate driver IC with integrated bootstrap diode

2ED2106S06F

INFINEON

PG-DSO-8

3000

650 V, 0.7 A high-side and low-side gate drivers with integrated bootloader diodes

1EDI20N12AF

INFINEON

PG-DSO-8

2500

1200 V, 4 A single-channel gate driver with separate output and short circuit clamping

1EDN6550B

INFINEON

SOT23-6

3000

Single-channel high-side and low-side gate driver with high-CMR TDI inputs

1ED2147S65F

INFINEON

PG-DSO-8

3000

650 V high-voltage side gate driver IC

1ED21471S65F

INFINEON

PG-DSO-8

2500

650 V high-voltage side gate driver IC

1ED2127S65F

INFINEON

PG-DSO-8

3000

650 V high-voltage side gate driver IC

1ED21271S65F

INFINEON

PG-DSO-8

2500

650 V high-voltage side gate driver IC

IR2304STRPBF

INFINEON

SOIC-8

20000

Half-bridge gate driver IC, non-inverting, 8-SOIC

LM5108DRCR

TI

VSON-10

9000

2.6A, 110V Half Bridge Gate Driver with Enable and Interlock Functions
