Trade Name:Gate Drivers
Brand:INFINEON
Particular Year:25+

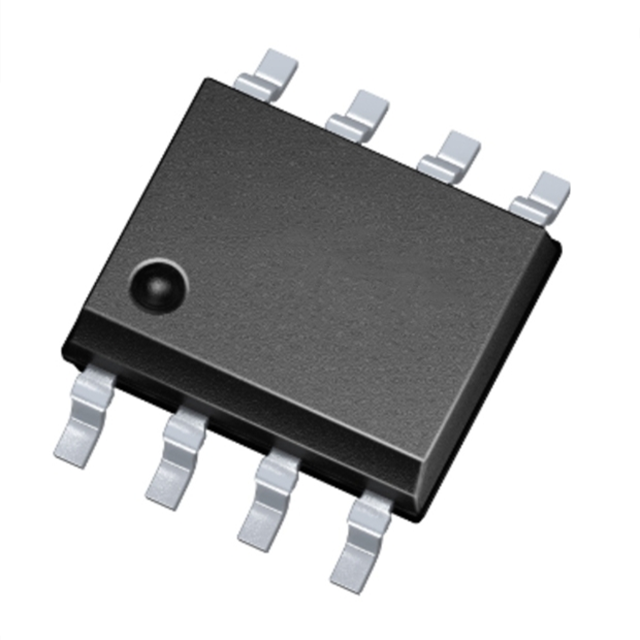

Package:PG-DSO-8
Delivery Date:New and original
Stock: 3000pcs
The 1ED2147S65F is a 650V high-side gate driver IC designed to provide robust and efficient control for high-voltage power transistors. The main features of this product include integrated bootloader diodes, fast switching capabilities, and comprehensive protection mechanisms such as under-voltage lockout (UVLO) and overcurrent protection.
Basic parameters and characteristics
Infineon thin-film SOI technology
Maximum blocking voltage: +650V
Output pull/pull current: ±4A
Maximum power supply voltage: 25 V
Integrated ultra-fast, low RDS(ON) bootstrap diode
Negative VS transient immunity: 100V
Overcurrent and undervoltage detection of power supply
The multi-functional RCIN/ Fault/Enable (RFE) features programmable fault clearance time
Propagation delay: less than 100ns
PG-DSO-8 packaging
According to the relevant tests of JEDEC47/20/22, it meets the requirements of industrial applications
Comply with the RoHS standard
These features make the EiceDRIVER™ 1ED2147S65F an ideal choice for enhancing the performance and reliability of high-voltage power supply systems.
Application field
Motor driver, general-purpose inverter
Forklift
Light electric vehicle
Model
Brand
Package
Quantity
Describe
INFINEON
PG-DSO-8
3000
650 V, 0.7 A high-side and low-side gate drivers with integrated bootloader diodes
INFINEON
PG-DSO-8
2500
1200 V, 4 A single-channel gate driver with separate output and short circuit clamping
INFINEON
SOT23-6
3000
Single-channel high-side and low-side gate driver with high-CMR TDI inputs
