The MAX20412ATJH device is a dual-output, high-efficiency step-down controller for automotive-grade SOC core power supplies, with an input voltage range of 3.0V to 5.5V and an output voltage range of 0.25V to 1.275V. The controller architecture supports a load current of up to 30A per phase.

Its main features include:

Adopt a 2-channel, highly efficient DC-DC controller with a small solution size

Working power supply voltage range: 3.0V to 5.5V

OUT1 supports 60A (two-phase operation)

OUT2 supports 30A

High-precision voltage regulators for application processors

Output voltage accuracy: ±2%

Differential remote voltage detection

I2C control output voltage: 0.25V to 1.275V, with a step of 6.25mV

Outstanding load transient performance

Programmable compensation

The low-noise feature can reduce EMI

Operating frequency: 2.2MHz or 1.1MHz

Spread spectrum option

Frequency synchronous input/output

Current mode, forced PWM and jump working mode

It has stable performance and is suitable for automotive environments

Independent enable input and PGOOD output

Low RDS(ON) external MOSFET

Over-temperature and short-circuit protection

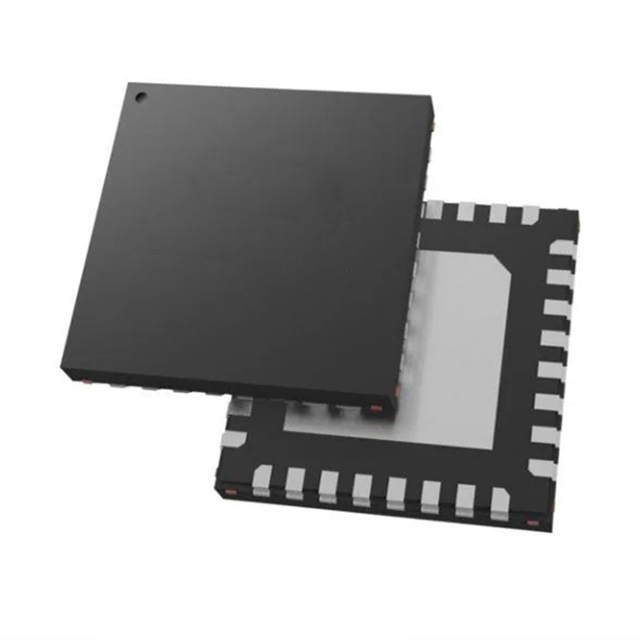

32-pin (5mm x 5mm) TQFN package with exposed pads

Operating temperature range: -40 °C to +125°C

Passed the EC-Q100 certification

Application scenarios

The MAX20412ATJH is mainly applied in automotive electronic systems, especially in scenarios that require low-voltage power management, such as in-vehicle entertainment systems, instrument panel displays, and sensor power supply. Its dual-channel design enables multiple voltage conversion tasks to be managed simultaneously on the same controller, enhancing the overall efficiency and reliability of the system.
