The MAX20412ATJG is an automotive low-voltage dual-channel step-down controller that supports up to 30A per phase load current. Its input voltage range is 3.0V to 5.5V, and the output voltage range is 0.25V to 1.275V. This controller is mainly used for power management in automotive electronic systems, featuring dual-channel voltage reduction functionality and is suitable for various automotive electronic devices.

The main features of MAX20412ATJG include:

Adopt a 2-channel, highly efficient DC-DC controller with a small solution size

Working power supply voltage range: 3.0V to 5.5V

OUT1 supports 60A (two-phase operation)

OUT2 supports 30A

High-precision voltage regulators for application processors

Output voltage accuracy: ±2%

Differential remote voltage detection

I2C control output voltage: 0.25V to 1.275V, with a step of 6.25mV

Outstanding load transient performance

Programmable compensation

The low-noise feature can reduce EMI

Operating frequency: 2.2MHz or 1.1MHz

Spread spectrum option

Frequency synchronous input/output

Current mode, forced PWM and jump working mode

It has stable performance and is suitable for automotive environments

Independent enable input and PGOOD output

Low RDS(ON) external MOSFET

Over-temperature and short-circuit protection

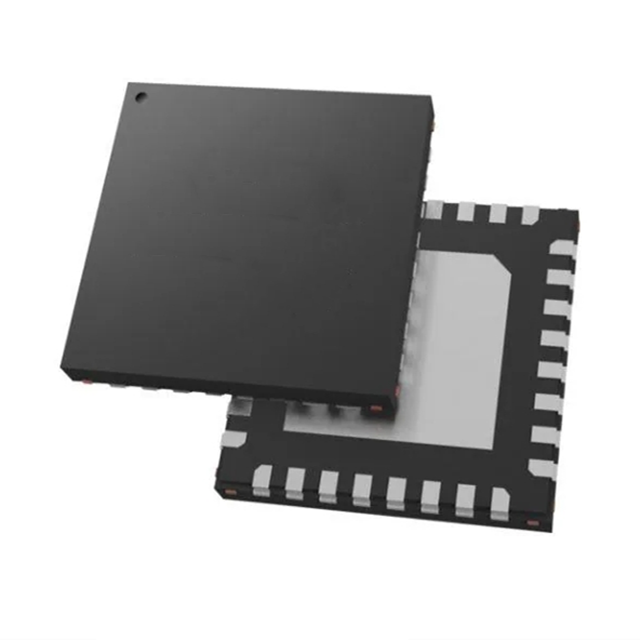

32-pin (5mm x 5mm) TQFN package with exposed pads

Operating temperature range: -40 °C to +125°C

Passed the EC-Q100 certification

Application scenarios

The MAX20412ATJG is mainly applied in automotive electronic systems, especially in scenarios that require low-voltage power management, such as in-vehicle entertainment systems, instrument panel displays, and sensor power supply. Its dual-channel design enables multiple voltage conversion tasks to be managed simultaneously on the same controller, enhancing the overall efficiency and reliability of the system.
