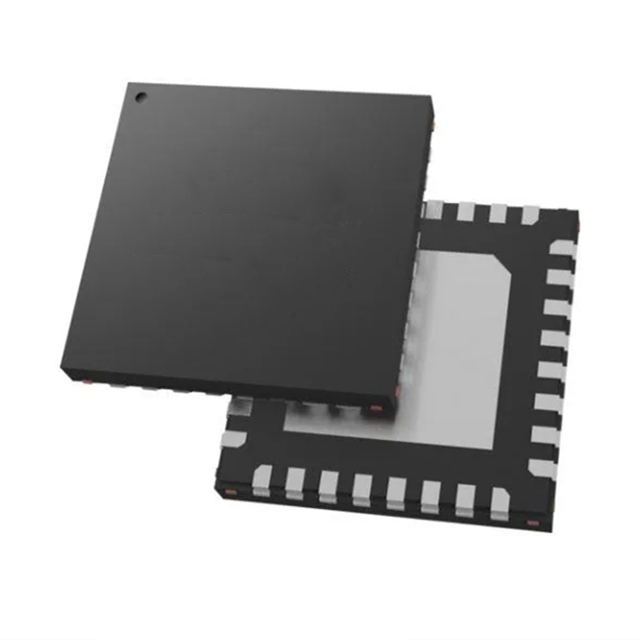

For picture reference, please see the specifications
< >

Commodity Model:MAX20412ATJC

Trade Name:Buck Regulator

Brand:Maxim

Particular Year:25+

Package:TQFN-32

Delivery Date:New and original

Stock: 2500pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
Maxim
Model
MAX20412ATJC
Package
TQFN-32
Describe
Automotive Low-Voltage, 2-Channel Step-Down Controller

Product Description

The MAX20412ATJC is a dual-output, high-efficiency synchronous step-down controller IC, with an operating voltage range of 3.0V to 5.5V and an output voltage range of 0.25V to 1.275V. The controller has a maximum load current of 30A per channel and can provide higher load current through two-phase operation, making it particularly suitable for automotive point load (PoL) and rear regulation applications ‌.


Basic parameters

The main parameters of MAX20412ATJC are as follows:

Topological structure: Buck

Output voltage: 250 mV to 1.275 V

Output current: 30 A, 60 A

Number of Output terminals: 2 Output

Input voltage - Minimum value: 3 V

Input voltage - Maximum: 5.5V

Switching frequency: 2.2 MHz

Minimum operating temperature: -40 ° C

Maximum operating temperature: + 125 ° C

Packaging/Box: TQFN-CU-32

Qualification: EC-Q100

Series: MAX20412

Development Kit: MAX20412EVKIT

Input voltage: 3 V to 5.5 V

Working power supply current: 570 uA


In addition, the MAX20412ATJC step-down regulator is mainly applied in point load (PoL) and post-regulation applications in automotive electronic systems, such as power management and on-board electronic devices. Its high performance and stability make it an ideal power management solution for automotive electronic systems ‌
