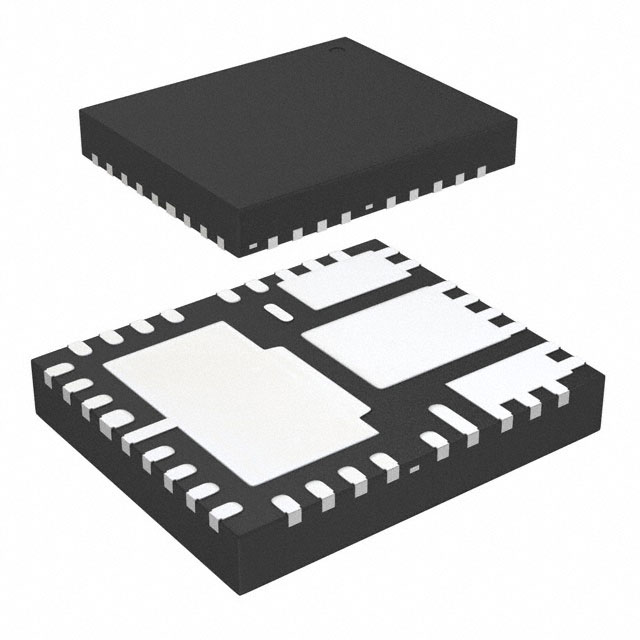

For picture reference, please see the specifications
< >

Commodity Model:MAX20796AGFB

Trade Name:Buck Regulator

Brand:Maxim

Particular Year:25+

Package:FC2QFN-35

Delivery Date:New and original

Stock: 3000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
Maxim
Model
MAX20796AGFB
Package
FC2QFN-35
Describe
Dual-phase expandable integrated voltage regulator, step-down voltage regulator with PMBus interface

Product Description

The MAX20796AGFB is a step-down switching regulator suitable for operation within an input voltage range of 4.5V to 16V, capable of providing a maximum load of up to 60A, or by adding an optional third-stage external power stage, it can achieve a load capacity of 90A. The MAX20796AGFB has an output voltage range of 0.5V to 5.5V, which can be achieved by partially limiting the duty cycle ‌.


The main parameters of MAX20796AGFB include:

Topology: Step-down synchronization (2), Linear (LDO) (1)

Output number: 2

Frequency - Switch: 200kHz - 800kHz

Voltage/Current - Output: 1:0.5V to 5.5V, 60A

Voltage/Current - Output 2:0.5V to 5.5V, 60A

Voltage/Current - Output 3: -

With LED driver: None

With monitor: None

With sequencer: None

Voltage - Power supply: 4.5V to 16V

Operating temperature: -40°C to 125°C (TJ)

Installation type: Surface mount type

Package/Shell: 35-PowerVQFN

Supplier device packaging: 35-FC2QFN (4x10.5)


In addition, the MAX20796AGFB is suitable for high-power demand application scenarios such as servers, telecommunications, communications, networks, and storage devices. It provides stable and efficient power solutions for these devices, especially in load point regulators, microcontroller chipsets, memory VDDQ I/O and auxiliary power ‌.
