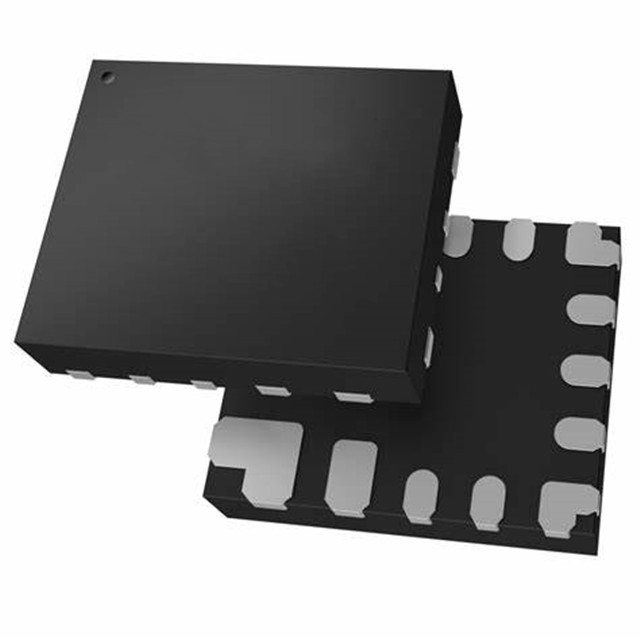

For picture reference, please see the specifications
< >

Commodity Model:MAX20806TFD

Trade Name:Buck Regulator

Brand:Maxim

Particular Year:25+

Package:14-FC2QFN

Delivery Date:New and original

Stock: 2000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
Maxim
Model
MAX20806TFD
Package
14-FC2QFN
Describe
6A, 3MHz, 2.7V to 16V, step-down switching regulator

Product Description

The MAX20806TFD device is a fully integrated high-efficiency step-down DC-DC switching regulator. It can operate under an input power supply ranging from 2.7V to 16V, and the output can be adjusted within the range of 0.5V to 5.8V, thereby providing a load current of up to 6A.

The switching frequency of this device can be configured from 500kHz to 3.0MHz, and it can be optimized in terms of solution size and performance.


Technical Specification

The main specifications of MAX20806TFD include:

Function: Lower blood pressure

Output configuration: Positive

Topology: Voltage reduction

Output type: Adjustable

Output number: 1

Voltage - Input (minimum) : 2.7V

Voltage - Input (maximum value) : 16V

Voltage - Output (minimum value/fixed) : 0.5V

Voltage - Output (Maximum) : 5.8V

Current - Output: 6A

Frequency - Switch: 3MHz

Synchronous rectifier: None

Operating temperature: -40°C to 150°C (TJ)

Installation type: Surface mount, wettable side wings

Package/Shell: 14-FC2QFN


Application field

The MAX20806TFD is suitable for a variety of scenarios that require efficient power management, including:

Communication equipment ‌

Servers and storage equipment ‌

Load point regulator ‌

The MAX20806 's high efficiency and multiple protection features make it an ideal choice for these application areas that require the equipment to operate stably in various environments ‌
