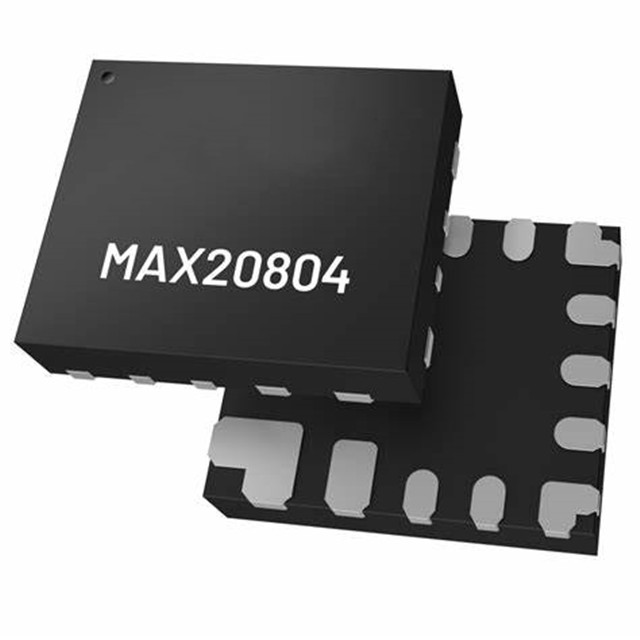

The MAX20804TFD is a fully integrated and highly efficient step-down DC-DC switching regulator. It can operate under an input power supply ranging from 2.7V to 16V, and each output can be adjusted between 0.5V and 5.8V, providing a load current of up to 4A.

Main characteristics

The MAX20804TFD has a high power density and a small number of components

Single power supply operation and integrated with LDO for bias generation

Compact 3.0mm x 2.5mm, 14-pin, FC2QFN package

Internal compensation

The wide operating range of the MAX20804TFD device

Input voltage range: 2.7V to 16V

Output voltage range: 0.5V to 5.8V

Configurable switching frequency: 500kHz to 3MHz

Junction temperature range: -40 °C to +150°C

Two Pin-Strap programming pins are used to select different configurations

The performance and efficiency optimized by MAX20804TFD

The peak efficiency is 91.3%, VDDH = 12V, VOUT = 1.8V and fSW = 1MHz

Optional AMS can improve load transients

Optional DCM can improve the efficiency under light load

Application field

The MAX20804TFD is suitable for various application fields, including:

Communication equipment

Network equipment

Servers and storage devices

Load point voltage regulator
