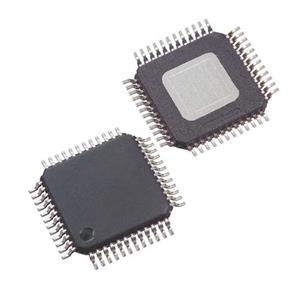

The TPS92662QPHPRQ1 LED Matrix Manager device provides individual pixel-level LED control. The device consists of four sub-strings of three series-integrated switches for bypassing individual LEDs. the individual sub-strings allow the device to accept single or multiple current sources, and it also allows up to four switches to be connected in parallel for bypassing high-current LEDs. the host microcontroller is used to control and manage the TPS92662QPHPRQ1 device. the serial interface supports the use of a CAN transceiver for a more physical layer. the 12C communication interface allows the use of a CAN transceiver. The serial interface supports the use of CAN transceivers for a more robust physical layer.12C communication interface can be used to read read and write to an external EEPROM.

Product Attributes

Type: DC DC Regulator

Topology: -

Internal Switch: Yes

Number of Outputs: 12

Voltage - Supply (min): 4.5V

Voltage - Supply (Max): 60V

Voltage - Output: 62V

Current - Outputs/Channels: -

Frequency: -

Dimming: PWM

Operating Temperature: -40°C ~ 125°C (TA)

Mounting Type: Surface Mount

Package/Housing: 48-PowerTQFP

Supplier Device Package: 48-HTQFP (7x7)

Applications

• Automotive headlight systems

• High brightness LED matrix systems

• ADB or glare-free high beams

• Sequential turn signals and animated daytime running lights
