With the increasing demand for animation effects in automotive lighting LEDs must be controlled independently. Therefore, LED drivers with digital interfaces are essential for efficiently driving pixel-controlled lighting applications. In exterior lighting, multiple lamp functions are often located on different PCB boards with off-board wires connected to each other. Conventional single-ended interfaces hardly meet the stringent EMC requirements. The FlexWire interface of the UART-based TPS929121QPWPRQ1 makes it easy to communicate over long distances off-board by using the industry-standard CAN physical layer without compromising EMC. The TPS929121QPWPRQ11 is a 12-channel, 40 V high-side LED driver with 8-bit output current and 12-bit PWM duty cycle control. The device meets a wide range of open LED, short to ground, and single LED short circuit diagnostics to satisfy a variety of regulation requirements. A configurable watchdog also automatically sets a fail-safe state when the MCU is disconnected, and the TPS929121-Q1 can be flexibly configured for different application scenarios via a programmable EEPROM.

Product Attributes

Type: Linear

Topology: Constant Current

Internal Switch: None

Number of Outputs: 12

Voltage - Supply (minimum): 4.5V

Voltage - Supply (Max): 40V

Voltage - Output: 0V ~ 5V

Current - Output/Channel: 75mA

Frequency: 10kHz ~ 1MHz

Dimming: Analogue, PWM

Application: Automotive Grade

Operating Temperature: -40°C ~ 125°C (TA)

Mounting Type: Surface Mount

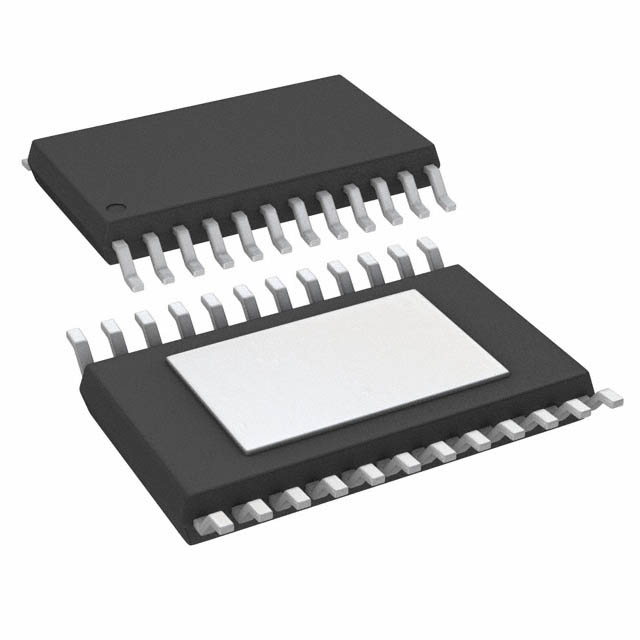

Package/Shell: 24-PowerTSSOP (0.173", 4.40mm Width)

Supplier Device Package: 24-HTSSOP

Applications

• Automotive exterior rear lights

• Exterior headlamps

• Interior ambient lighting

• Automotive dashboard displays
