MAX42405AFOB: 36V, 6A, Fully Integrated Synchronous Buck Converter, FC2QFN-17

Basic Information:

Model Number: MAX42405AFOB

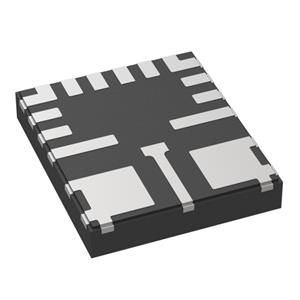

Package: FC2QFN-17

Type: Synchronous Buck Converter

Overview:

The MAX42405AFOB is miniature The MAX42405AFOB is a miniature synchronous buck converter with integrated high side and low side switches. These ICs provide up to 6A of current with an input voltage range of 4.5V to 36V, and voltage quality can be monitored by observing the PGOOD signal. The ICs can operate at 99% duty cycle with low dropout voltage, making them ideal for industrial applications.

MAX42405AFOB - Product Features:

Multifunction, Small Form Factor

VIN Operating Voltage Range: 4.5V to 36V

10μA quiescent current in hopping mode

Synchronous DC-DC Converter with Integrated Field Effect Transistors (FETs)

Fixed Frequency Options: 400kHz and 1.5MHz Internal soft-start

- 2.5ms (400kHz)

- 3.5ms (1.5MHz)

Programmable output voltage range: 0.8V to 10V

3.5mm x 3.75mm, 17-pin FC2QFN

Symmetrical package provides excellent EMI performance

Bi-phase capability

- Bi-phase configuration for high power designs

- Dynamic current equalisation via shared VEA pin

- Low IQ Operational Capability: Bi-Phase

Accurate output voltage monitoring with PGOOD

Forced Pulse Width Modulation (PWM) and Jump Mode operation

99% duty cycle operation with low dropout voltage

Over temperature and short circuit protection

Operating temperature range: -40°C to +125°C
