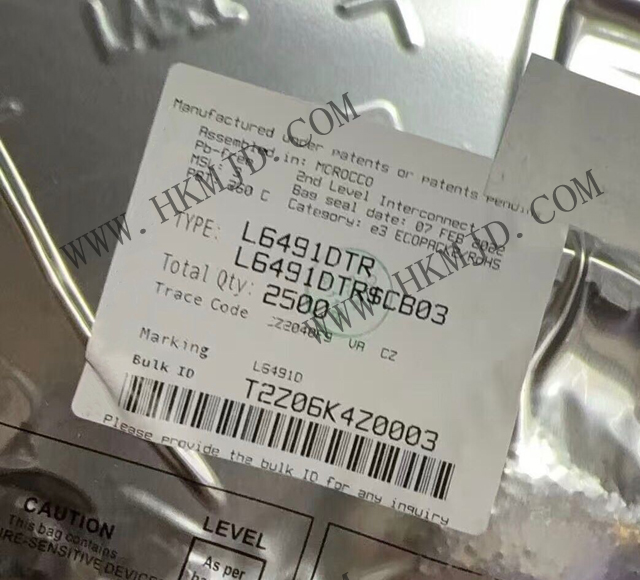

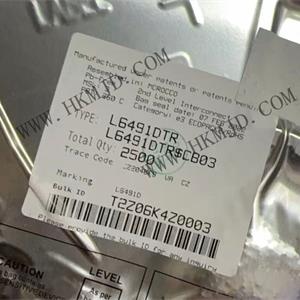

For picture reference, please see the specifications
< >

Commodity Model:L6491DTR

Trade Name:L6491DTR

Data Manual:L6491DTR.pdf

Brand:ST

Particular Year:23+

Package:SOP14

Delivery Date:New and Original

Stock: 12000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
ST
Model
L6491DTR
Package
SOP14
Describe
High voltage high side and low side 4 A gate drivers

Product Description

The L6491 is a high voltage device manufactured with the BCD6 “OFF-LINE” technology. It is a single-chip half-bridge gate driver for N-channel power MOSFET or IGBT.

The high-side (floating) section is designed to stand a voltage rail up to 600 V. The logic inputs are CMOS/TTL compatible down to 3.3 V for easy interfacing microcontroller/DSP.

An integrated comparator is available for fast protection against overcurrent, overtemperature, etc.


All Functions

High voltage rail up to 600 V

dV/dt immunity ± 50 V/ns in full temperature range

Driver current capability: 4 A source/sink

Switching times 15 ns rise/fall with 1 nF load

3.3 V, 5 V TTL/CMOS inputs with hysteresis

Integrated bootstrap diode

Comparator for fault protections

Smart shutdown function

Adjustable deadtime

Interlocking function

Compact and simplified layout

Bill of material reduction

Effective fault protection

Flexible, easy and fast design
