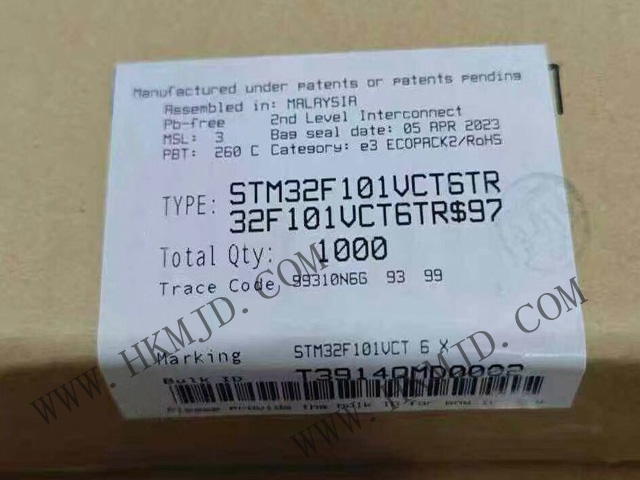

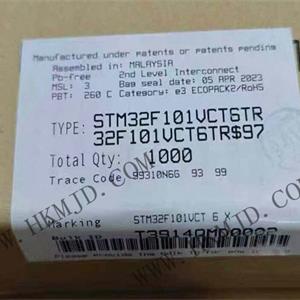

For picture reference, please see the specifications
< >

Commodity Model:STM32F101VCT6TR

Trade Name:32-Bit Microcontroller - MCU

Brand:ST

Particular Year:23+

Package:LQFP-100

Delivery Date:New and Original

Stock: 5000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
ST
Model
STM32F101VCT6TR
Package
LQFP-100
Describe
36MHz, 32-bit ARM® Cortex®-M3 STM32F1 microcontroller IC, LQFP-100

Product Description

【ST】STM32F101VCT6TR — 36MHz, 32-bit ARM® Cortex®-M3 STM32F1 microcontroller IC, LQFP-100


Product Details:

Model: STM32F101VCT6TR

Package: LQFP-100

Type: 32-bit Microcontroller - MCU

Description: Mainstream basic-level series ARM Cortex-M3 MCU with 256 KB Flash and 36 MHz CPU.

The STM32F101VCT6TR integrates a high-performance ARM® Cortex®-M3 32-bit RISC core (operating at 36 MHz), high-speed embedded memory (up to 512 Kbytes of Flash and up to 48 Kbytes of SRAM), and a large number of enhanced I/O and peripherals connected to two APB buses. All devices feature a 12-bit ADC, four general-purpose 16-bit timers, and standard and advanced communication interfaces: up to two I2C, three SPI, and five USART.


STM32F101VCT6TR Specifications:

Core Processor: ARM® Cortex®-M3

Core Specifications: 32-bit

Speed: 36MHz

Connectivity: I2C, IrDA, LINbus, SPI, UART/USART

Peripherals: DMA, PDR, POR, PVD, PWM, temperature sensor, WDT

I/O count: 80

Program memory capacity: 256KB (256K x 8)

Program memory type: Flash

RAM size: 32K x 8

Voltage - Power Supply (Vcc/Vdd): 2V to 3.6V

Data converter: A/D 16x12b; D/A 2x12b

Oscillator type: Internal

Operating temperature: -40°C to 85°C (TA)

Mounting type: Surface mount

Supplier device package: 100-LQFP (14x14)

Package/housing: 100-LQFP
