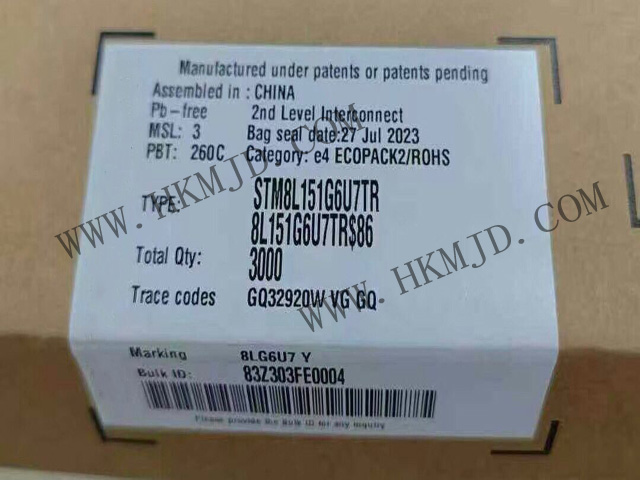

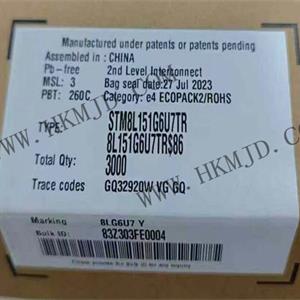

STM8L151G6U7TR: 16 MHz, low-power 8-bit microcontroller (MCU), UFQFN-28

Overview:

STM8L151G6U7TR — ultra-low-power 8-bit MCU with 32 KB Flash, 16 MHz CPU, and integrated EEPROM. The STM8L151G6U7TR is a member of the STM8L ultra-low-power 8-bit series. The medium-density STM8L15x series operates at voltages ranging from 1.8 V to 3.6 V (as low as 1.65 V during power-down) and within temperature ranges of -40 °C to +85 °C and -40 °C to +125 °C.

STM8L151G6U7TR Specifications:

Series: STM8L EnergyLite

Core Processor: STM8

Core Specifications: 8-bit

Speed: 16 MHz

I/O Count: 26

Program Memory Capacity: 32 KB (32K x 8)

Program Memory Type: Flash

EEPROM Capacity: 1K x 8

RAM Size: 2K x 8

Voltage - Supply (Vcc/Vdd): 1.8V to 3.6V

Data Converter: A/D 18x12b; D/A 1x12b

Oscillator Type: Internal

Operating Temperature: -40°C to 105°C (TA)

Mounting Type: Surface Mount

Supplier Device Package: 28-UFQFPN (4x4)

Package/Case: 28-UFQFN

STM8L151G6U7TR Product Features:

Operating Conditions

Operating Voltage Range: 1.8 V to 3.6 V (drops to 1.65 V during power failure)

Temperature Range: -40°C to 85, 105, or 125°C

Low Power Features

5 Low Power Modes: Standby, Low Power Run (5.1 µA), Low Power Standby (3 µA), Active Pause with Full RTC (1.3 µA), Pause (350 nA)

Current consumption: 195 µA/MHz + 440 µA

Ultra-low leakage current per I/O: 50 nA

Fast wake-up from Halt: 4.7 µs

Advanced STM8 core

Harvard architecture and 3-stage pipeline

Maximum frequency 16 MHz, peak 16 CISC MIPS

Up to 40 external interrupt sources

Memory

Up to 32 Kbytes of flash program memory and 1 Kbyte of data EEPROM with ECC, RWW

Flexible write protection and read protection modes

Up to 2 Kbytes of RAM
