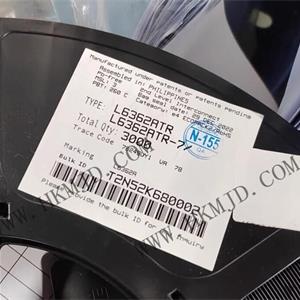

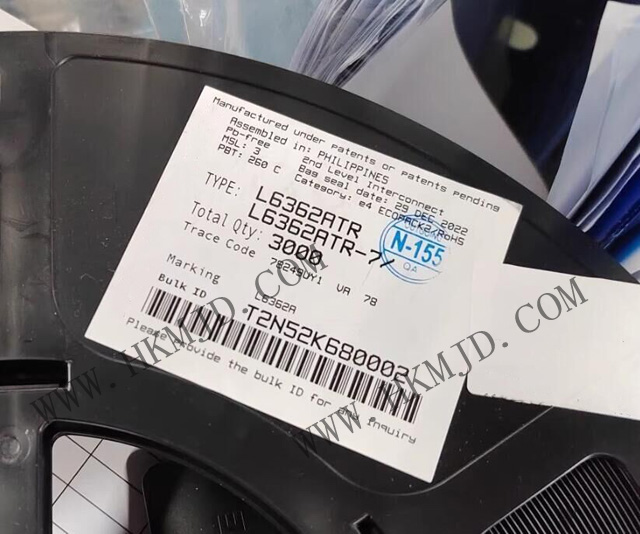

L6362ATR: IO-Link Communication Transceiver IC, VFDFPN-12

Overview:

The L6362ATR is an IO-Link and SIO mode transceiver device compliant with the PHY2 (3-wire connection) specification, supporting COM1 (4.8 kBd), COM2 (38.4 kBd), and COM3 (230.4 kBd) modes. The output stage can be configured as high-side, low-side, or push-pull, capable of driving resistive, capacitive, and inductive loads. It can be connected to sensor chips in an industrial 24 V environment. The industrial environment can include PLCs, IO-Link masters, relays, or valves.

L6362ATR Specifications:

Type: Transceiver

Protocol: IO-Link

Driver/Receiver Count: 1/1

Voltage - Supply: 7 V to 36 V

Operating Temperature: -40°C to 125°C

Mounting Type: Surface Mount

Package/Housing: 12-VFDFN Bare Pad

Supplier Device Package: 12-VFDFPN (3x3)

L6362ATR Product Features:

Supply voltage: 7 V to 36 V

Compatible with 5 V and 3.3 V I/O

5 V or 3.3 V, 10 mA selectable linear regulator

0.3 A output current intervention threshold

Comprehensive protection

Reverse polarity

Cutoff function for overload protection

Over-temperature

Under-voltage and over-voltage

GND and VCC bare wires

Operating environment temperature: -40 to +125 °C

Selectable output stage: high-side, low-side, and push-pull

Suitable for driving L, C, and R loads

30 μF output load drive capability

Inductor switching capability up to 500 mJ

Supports wake-up detection

Rapid demagnetisation of inductive loads

Supports COM1, COM2, and COM3 modes

Miniaturised VFDFPN 12L (3x3x0.90 mm) package
