Trade Name:RF Amplifier
Brand:TI
Particular Year:24+

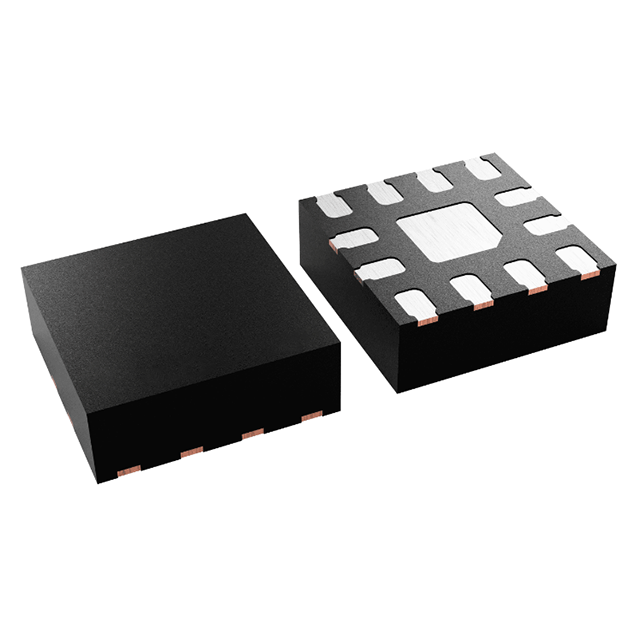

Package:WQFN-HR -12
Delivery Date:New and Original
Stock: 2000pcs
TRF1208BRPVR is a very high performance, RF amplifier optimized for radio frequency (RF) applications. This device is excellent for ac-coupled applications that require a single-ended to differential conversion when driving an analog-to-digital converter (ADC) such as the high performance ADC12DJ5200RF.
Features Of TRF1208BRPVR
Excellent performance driving RF ADCs
Single-ended to differential
Differential to differential
Two fixed-gain variants:
16 dB (TRF1208)
10 dB (TRF1208B)
Bandwidth:
TRF1208: 8 GHz (1-dB), 11 GHz (3-dB)
TRF1208B: 8.8 GHz (1-dB), 10.5 GHz (3-dB)
OIP3:
TRF1208: 37 dBm (2 GHz), 32 dBm (6 GHz)
TRF1208B: 36 dBm (2 GHz), 28 dBm (6 GHz)
P1dB:
TRF1208: 15 dBm (2 GHz), 12.5 dBm (6 GHz)
TRF1208B: 14 dBm (2 GHz), 11 dBm (6 GHz)
Noise figure:
TRF1208: 7 dB (2 GHz), 7 dB (8 GHz)
TRF1208B: 9.4 dB (2 GHz), 10.2 dB (8 GHz)
Output noise spectral density (NSD), dBm/Hz:
TRF1208: –151 (2 GHz), –151 (8 GHz)
TRF1208B: –154.6 (2 GHz), –153.8 (8 GHz)
Gain and phase imbalance: ±0.3 dB and ±3º
Power-down feature
3.3‑V single-supply operation
Active current: 138 mA
Applications Of TRF1208BRPVR
RF sampling or GSPS ADC driver
Aerospace and defense
Radar seeker front end
Phased array radar
Military radios
