LMH9226IRRLR -  Single-Ended to Differential 2.3GHz to 2.9GHz RF Amplifier With Balun

Part Number: LMH9226IRRLR

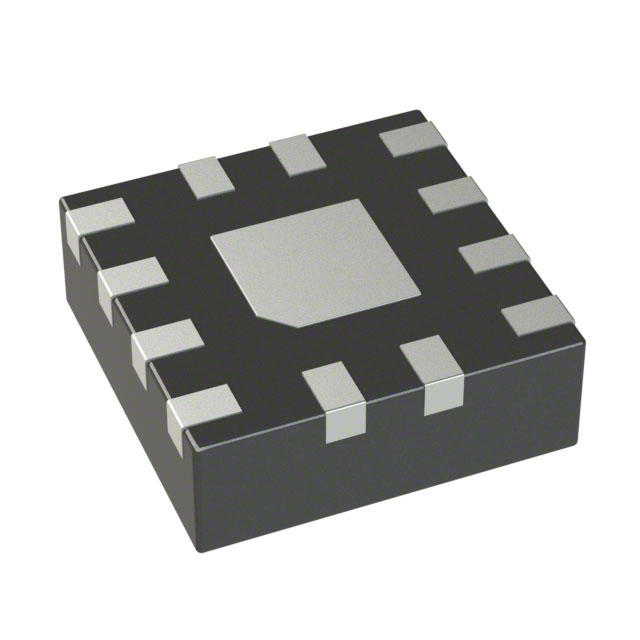

Package: WQFN-12

Type: RF Amplifiers IC

Description: RF Amplifier IC General Purpose 2.3GHz ~ 2.9GHz 12-WQFN (2x2)

Product Overviews

LMH9226IRRLR is high-performance, single-channel, single-ended, 50-Ω input to differential 50-Ω or 100-Ω output RF gain block amplifier supporting a 2.3-GHz to 2.9-GHz frequency band. The device is well suited to meet requirements for 5G m-MIMO or small cell base station applications.

Product Features

• Single-channel, single-ended input to differential output RF gain block amplifier

• Supports 2.6-GHz center frequency with 400-MHz, 1-dB bandwidth

• 17-dB typical gain across the 1-dB bandwidth into ZLOAD = 50 Ω

• Noise figure < 3 dB in 1-dB bandwidth

• 35-dBm OIP3 at 2-dBm two-tone output power into ZLOAD = 50 Ω

• 17.5-dBm output P1dB into ZLOAD = 50 Ω

• 275-mW power consumption on 3.3-V single supply

• Up to TA = 105°C operating temperature

Applications

• 5G m-MIMO base stations

• Active antenna systems, m-MIMO (AAS)

• Small cell base stations

• TDD/FDD cellular base station

• Wireless infrastructure

• Low-cost radios

• Single-ended to differential conversion

• Balun alternatives

• RF gain blocks

• Differential driver for GSPS ADCs
