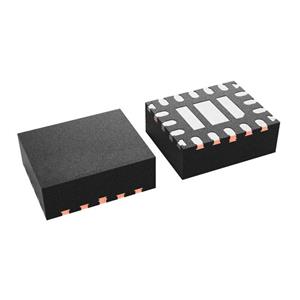

TRF1305B2RYPR - Dual-Channel, DC to > 6.5-GHz, 3-dB-Bandwidth, Fully Differential Amp

Part Number: TRF1305B2RYPR

Package: VQFN-16

Type: RF Amplifier IC

Description: RF Amplifier IC VSAT 0Hz ~ 6.5GHz 16-WQFN-FCRLF (2.5x3)

Product Overviews

TRF1305B2RYPR is a very high performance, closed-loop, dual-channel RF amplifier that has an operational bandwidth from true-dc to > 6.5 GHz. The TRF1305B2 features a VOCM pin that allows setting different output common-mode and input common-mode voltages (for example, for levelshifting or for most IQ down-converter ADC-interface applications that have differing dc common-mode voltages).

Product Features

• Three performance-optimized power gain variants: 10 dB

• Preset gain can be reduced with external resistors

• High large-signal bandwidth: 7 GHz (3-dB), 6.5 GHz (1-dB)

• OP1dB (differential 100-Ω load):

– 16 dBm (2 GHz), 12.5 dBm (4 GHz)

• OIP3: 34 dBm (2 GHz), 24 dBm (4 GHz)

• Noise Figure: 10.2 dB (2 GHz), 12 dB (4 GHz)

• Slew rate: 25 kV/μs

• Large input (±1 V) and output (±0.5 V) commonmode voltage ranges

• Supports 5-V, flexible single or split supplies

• Active power dissipation: 500 mW per channel

• Power-down for each channel

Applications

• RF sampling or GSPS ADC driver

• Wireless communications test

• High-speed data acquisition

• Oscilloscopes (DSOs)

• High speed digitizer

• Spectrum analyzer

• Vector signal transceiver (VST)

• RF active balun

• I/Q mixer interface
