The STL33N60DM6 N-channel power MOSFET is a product of the MDmesh DM6 family with fast recovery diode characteristics. Compared to previous generation MDmesh technology, DM6 combines extremely low recovery charge (Qrr), extremely short recovery time (trr), and excellent on-resistance (RDS(on)) with the most efficient switching characteristics in the industry, making it ideal for use in efficient-demanding bridge topologies and ZVS (zero voltage switching) phase-shifting converters.

Product attribute

FET type: N channel

Technology: MOSFET (Metal oxide)

Drain-source voltage (Vdss) : 600 V

Current at 25°C - Continuous Drain (Id) : 21A (Tc)

Drive voltage (Max Rds On, min Rds On) : 10V

On-resistance (Max.) at different ids and Vgs: 140 milliohm @ 10.5A, 10V

Vgs(th) (Max.) for different ids: 4.75V@250µA

Gate charge (Qg) at different Vgs (Max.) : 35 NC-@10 V

Vgs (Max.) : ±25V

Input capacitance (Ciss) for different Vds (Max.) : 1500 PF-@ 100 V

FET function: -

Power dissipation (Max.) : 150W (Tc)

Operating temperature: -55°C ~ 150°C (TJ)

Mounting type: Surface mount type

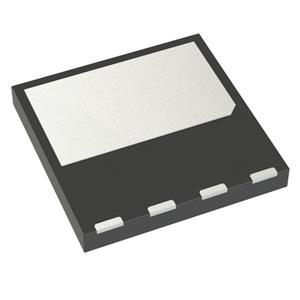

Supplier device package: PowerFlat™ (8x8) HV

Package/case: 8-PowerVDFN
