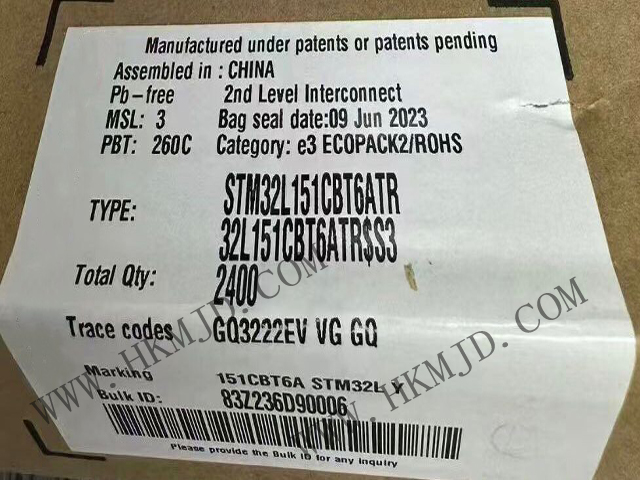

The STM32L151CBT6ATR is an ultra-low-power 32-bit microcontroller based on the ARM® Cortex®-M3 core, offering high performance and low power consumption.

1. Core and Performance

CPU: ARM Cortex-M3 32-bit RISC core, operating at up to 32 MHz (performance up to 1.25 DMIPS/MHz).

Memory:

Flash memory: 128 KB (with ECC error correction).

RAM: 32 KB (some sources indicate 16 KB, which may vary by model or configuration).

EEPROM: 4 KB (with ECC error correction).

2. Ultra-low power consumption features

Operating voltage: 1.8V to 3.6V (can operate as low as 1.65V).

Low power consumption modes:

Standby mode: 0.28 μA (with wake-up pin).

Operating mode: 185 μA/MHz.

Fast wake-up: 8 μs activation time.

3. Peripherals and interfaces

Communication interfaces:

USB (with internal 48 MHz PLL).

USART (supports ISO 7816, IrDA).

SPI (2 channels, 16 Mbps).

I²C (2 channels, supports SMBus/PMBus).

Analogue Peripherals:

12-bit ADC (24 channels, 1 Msps).

12-bit DAC (2 channels).

Ultra-low power comparators (2 channels).

Timers: 10 (including 6 16-bit PWM timers).

4. Packaging and Operating Environment

Packaging: 48-pin LQFP (7x7 mm).

Operating temperature: -40°C to 85°C (some data extended to 105°C).

5. Application Areas

Portable devices (e.g., medical sensors, wearable devices).

Industrial control (low-power PLCs, HMIs).

Smart home (touch panels, low-power IoT nodes).

This chip is suitable for embedded system designs requiring low power consumption and high performance, and offers a rich set of peripherals and flexible power management modes.
