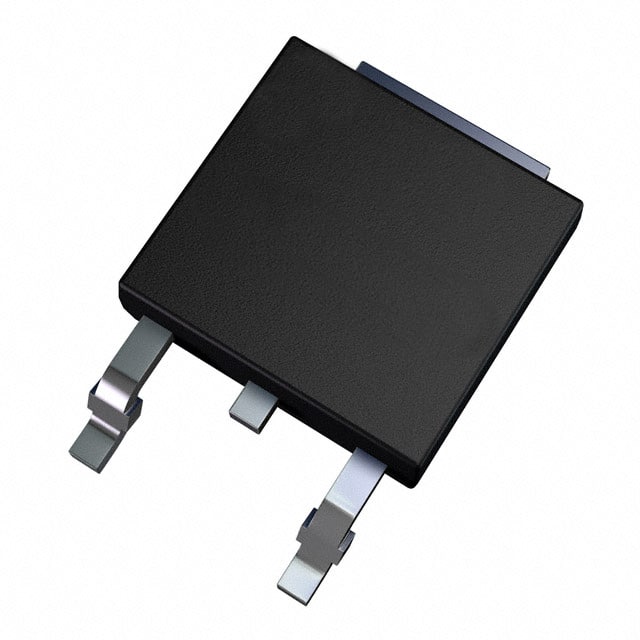

The STD65N160M9 n-channel power MOSFET is based on the innovative superjunction MDmesh M9 technology, which is suitable for medium/high voltage MOSFETs with very low on-resistance RDS(on) per unit area. The silicon-based M9 technology uses a multi-drain manufacturing process to enhance the device structure. Among all silicon-based fast switching overjunction power MOSFETs, products manufactured using this process have lower on-resistance and reduced gate charge values, making them particularly suitable for applications requiring ultra-high power density and excellent efficiency.

specification

FET type: N channel

Technology: MOSFET (Metal oxide)

Drain-source voltage (Vdss) : 650 V

Current at 25°C - Continuous Drain (Id) : 17A (Tc)

Drive voltage (Max Rds On, min Rds On) : 10V

On-resistance (Max.) at different ids and Vgs: 160 milliohm @ 10A, 10V

Vgs(th) (Max.) for different ids: 4.2V@ 250µA

Gate charge (Qg) at different Vgs (Max.) : 32 NC-@10 V

Vgs (Max.) : ±30V

Input capacitance (Ciss) at different Vds (Max.) : 1239 PF-@400 V

FET function: -

Power dissipation (Max.) : 106W (Tc)

Operating temperature: -55°C ~ 150°C (TJ)

Mounting type: Surface mount type

Supplier device package: DPAK

Package/housing: TO-252-3, DPAK (2 Leads + Tab), SC-63
