The 1EDI60I12AF is part of the EiceDRIVER™ 1ED 150mil Compact Series (1ED-AF Series).The 1EDI60I12AF provides independent sink and source current outputs, 240 ns input filter, and accurate and stable timing. The drivers operate over a wide range of supply voltages and are unipolar or bipolar.

Feature Description

EiceDRIVER™ Compact Single Channel Isolated Gate Driver Family

For 600 V, 650 V, 1200 V IGBTs, SiC and Si MOSFETs

Galvanically isolated coreless transformer gate drivers

10 A Typical Peak In and Out Out Output Current

40 V absolute maximum output supply voltage

300 ns propagation delay with 240 ns input filters

High common-mode transient immunity CMTI >100 kV/μs

Independent source and sink current outputs

Short circuit clamping and active shutdown

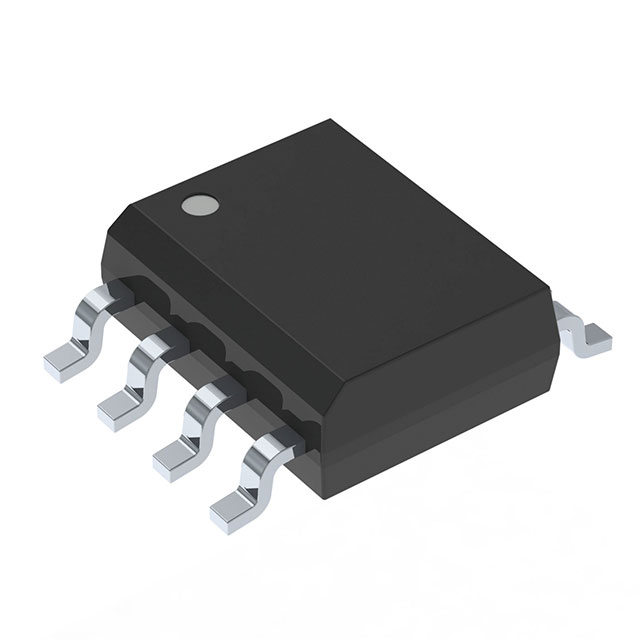

DSO-8 150 mil narrow body package with 4 mm creepage distance

10.5 V/12.7 V undervoltage lockout (UVLO) protection with hysteresis

Potential applications

• AC and brushless DC motor drives

• High voltage DC/DC-converter and DC/AC-inverter

• Induction heating resonant application

• UPS-systems

• Commercial air-conditioning (CAC)

• Server and telecom switched mode power supplies (SMPS)

• Solar
