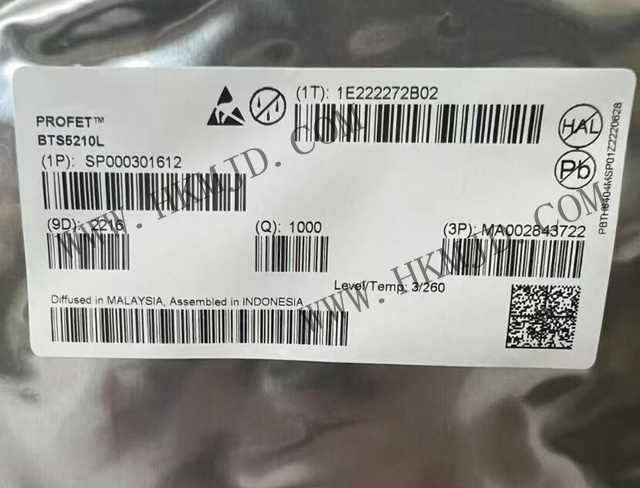

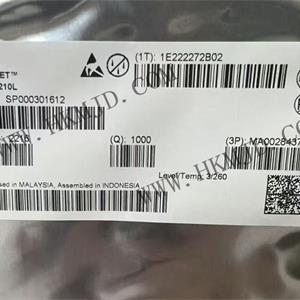

For picture reference, please see the specifications
< >

Commodity Model:BTS5210L

Trade Name:Power Switch IC - Power Distribution

Brand:INFINEON

Particular Year:22+

Package:PG-DSO-12

Delivery Date:New and Original

Stock: 4000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
INFINEON
Model
BTS5210L
Package
PG-DSO-12
Describe
Power Switch/Driver 1:1 N Channel 1.8A PG-DSO-12

Product Description

The BTS5210L is a PROFET™ (Protected FET) smart high-side power switch launched by Infineon. It is a multi-channel power switch IC designed for applications such as automotive electronics, industrial control, and power management. The device is packaged in a PG-DSO-12 package, features dual-channel output, supports a wide input voltage range of 5.5V to 40V, and provides multiple protection functions, making it suitable for high-reliability switch control.


Core Features of the BTS5210L

Dual-channel high-side switch: Supports two independent outputs, with each channel capable of 1.8A continuous current (peak 6.5A).

Ultra-low on-resistance: Typical 110mΩ, reducing power loss and improving efficiency.

Multiple protection mechanisms:

Overcurrent protection (fixed current limiting)

Short-circuit protection

Thermal shutdown (over-temperature protection)

Overvoltage protection

ESD protection (electrostatic discharge protection).

Wide operating voltage range: 5.5V to 40V, suitable for 12V/24V automotive electronic systems.

Industrial-grade temperature range: -40°C to +150°C, suitable for harsh environments.

Compliant with automotive standards: Certified to AEC-Q100, suitable for applications such as body control modules (BCM), agricultural vehicles, and truck ECUs.


Product attributes of BTS5210L

Product type: Power switch IC - Distribution

Type: High Side

Number of output terminals: 2 Output

Output current: 2.4 A

Current limit: 6.5 A

On-Resistance—Maximum:    140 mOhms

On-Time—Maximum:    250 us

Off-Time—Maximum:    270 us

Operating Supply Voltage:    5.5 V to 40 V

Minimum Operating Temperature:    -40°C

Maximum Operating Temperature:    +150°C


Typical Applications for BTS5210L

Automotive electronics: headlight control, motor drive, body control module (BCM)

Industrial automation: PLC systems, power management, load switching

Agricultural machinery: 24V trucks and agricultural vehicle ECUs

Consumer electronics: smart home power management
