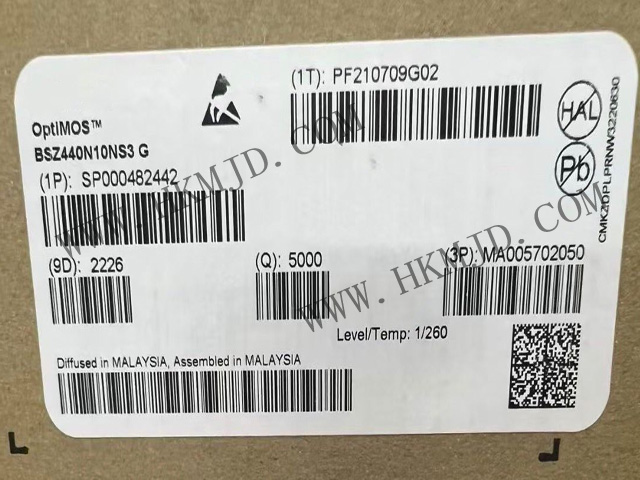

For picture reference, please see the specifications
< >

Commodity Model:BSZ440N10NS3G

Trade Name:N-Channel Power MOSFET

Brand:INFINEON

Particular Year:22+

Package:PG-TSDSON-8

Delivery Date:New and Original

Stock: 40000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
INFINEON
Model
BSZ440N10NS3G
Package
PG-TSDSON-8
Describe
OptiMOS™3 Power-Transistor, 100V

Product Description

The BSZ440N10NS3G is an N-channel power MOSFET introduced by Infineon, belonging to the OptiMOS™ 3 series, and is packaged in a PG-TSDSON-8 package. This device is specifically designed for high-efficiency, high-power-density power conversion applications, featuring low on-resistance, fast switching capability, and high reliability.


BSZ440N10NS3G Product Features

Low on-resistance: RDS(on) as low as 1.1 milliohms, significantly reducing power loss and improving system efficiency.

Fast switching capability: Low gate charge (Qg = 9.1 nC @ 10 V) supports high-frequency operation scenarios, reducing switching losses.

High current handling capability: Continuous drain current (Id) up to 18 A (Tc), pulse current (Idp) up to 660 A.

High reliability: Complies with the automotive electronics industry standard AEC-Q101, ensuring stable operation in harsh environments.

Environmental compliance: Complies with RoHS standards and is halogen-free.

Compact packaging: Uses PG-TSDSON-8 packaging, which is small in size and saves PCB space.


BSZ440N10NS3G Technical Specifications

Drain-source voltage (Vdss): 100V

Continuous drain current (Id): 18A (at Tc=25°C)

Pulse drain current (Idp): 40A

On-resistance (RDS(on)): 38mΩ @ 10V, 12A

Gate charge (Qg): 9.1nC @ 10V

Input capacitance (Ciss): 640pF @ 50V

Threshold voltage (Vgs(th)): 2.7V @ 12µA

Switching time: Rise 1.8ns / Fall 2ns

Maximum power dissipation (Pd): 29W

Operating temperature: -55°C to +150°C

Package: PG-TSDSON-8 (3.3×3.3×1.1mm)


Application areas

BSZ440N10NS3G is widely used in the following areas:

Synchronous rectification in AC-DC SMPS: Enhances power conversion efficiency.

Motor control in 48V-80V systems: Such as home vehicles, power tools, trucks, etc.

Isolated DC-DC converters: Suitable for communication and data communication systems.

Switches and circuit breakers in 48V systems

Class D audio amplifiers

Uninterruptible power supply (UPS)
