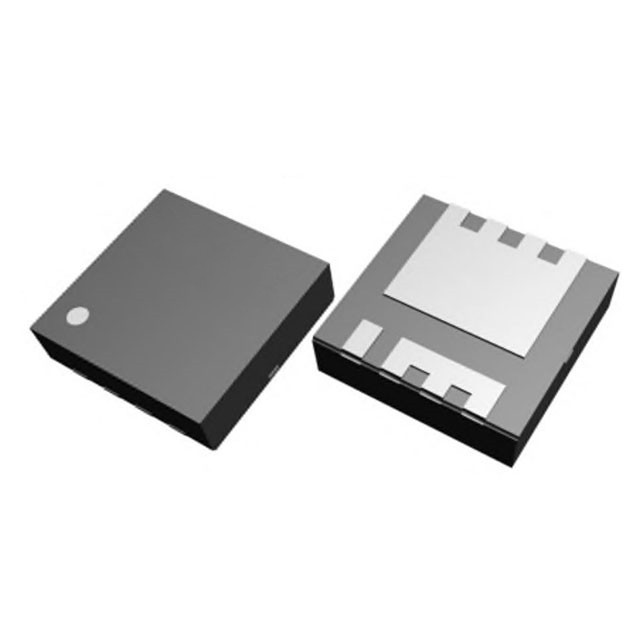

For picture reference, please see the specifications
< >

Commodity Model:BSZ011NE2LS5I

Trade Name:N-Channel Power MOSFET

Brand:INFINEON

Particular Year:25+

Package:TSDSON-8

Delivery Date:New and original

Stock: 2000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
INFINEON
Model
BSZ011NE2LS5I
Package
TSDSON-8
Describe
1.1m Ω, OptiMOS™ 5 25V power MOSFET

Product Description

BSZ011NE2LS5I is an OptiMOS™ 5 power MOSFET launched by Infineon. It is designed to meet the requirements of enhancing system efficiency while reducing system costs. Compared with other alternative devices, the RDS(on) and quality factor (RDS(on) x Qg) of this device are lower. The following are its core features:

Excellent on-resistance

Compliant switch performance (low quality factor Ron x Qg and Ron x Qgd)

Compliant with RoHS standards and halogen-free

Optimized EMI performance (integrated damping network)

High efficiency

High Power density packaged with S3O8 or Power Block modules

The overall system cost has been reduced

Operate at a high switching frequency


Performance parameters of BSZ011NE2LS5I

FET type: N-channel

Technology: MOSFET (Metal Oxide)

Drain-source voltage (Vdss) : 25 V

Current at 25°C - continuous drain (Id) : 35A (Ta), 40A (Tc)

Drive voltage (maximum Rds On, minimum Rds On) : 4.5V, 10V

On-resistance (maximum value) at different ids and Vgs: 1.1 milliohms @ 20A, 10V

Vgs(th) (maximum value) at different ids: 2V @ 250µA

Gate charge (Qg) at different Vgs (maximum value) : 50 nC @ 10 V

Vgs (maximum value) : ±16V

Input capacitance (Ciss) at different Vds (maximum value) : 3400 pF @ 12 V

FET function: -

Power dissipation (maximum) : 2.1W (Ta), 69W (Tc)

Operating temperature: -55°C to 150°C (TJ)

Installation type: Surface mount type

Supplier device packaging: PG-TSDSON-8


Application field

Desktop and server r

Single-phase and multi-phase PoL

CPU/GPU voltage regulation in laptops

High power density voltage regulator

O-ring

Electronic fuse
