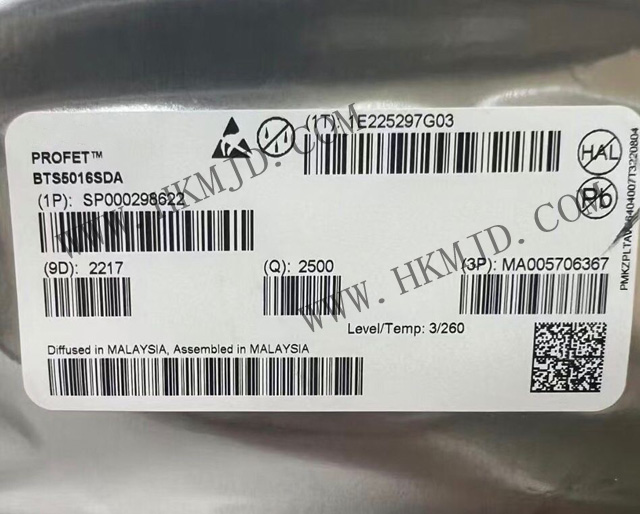

For picture reference, please see the specifications
< >

Commodity Model:BTS5016SDA

Trade Name:Power Switch IC - Power Distribution

Brand:INFINEON

Particular Year:22+

Package:PG-TO252-5

Delivery Date:New and Original

Stock: 30000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
INFINEON
Model
BTS5016SDA
Package
PG-TO252-5
Describe
Power Switch/Driver 1:1 N-Channel 5.5A PG-TO252-5

Product Description

The BTS5016SDA is a single-channel high-side power switch in a PG-TO252-5-11 package with built-in protection features.


This power transistor is constructed using an N-channel vertical power MOSFET with a charge pump. The design is based on Smart SIPMOS chip-scale packaging technology. BTS5016SDA features a current control input and provides diagnostic feedback, including load current detection and fault signals defined under overload operation, over-temperature shutdown, and/or short-circuit shutdown conditions.


Product Features — BTS5016SDA

Part of an expandable product series

Load current detection

Reversave™

Ultra-low standby current

Current control input pin

Improved electromagnetic compatibility (EMC)

Rapid demagnetisation of inductive loads

Stable operation under undervoltage conditions

Environmentally friendly product (compliant with RoHS standards)

AEC certification


Advantages — BTS5016SDA

High load current capability

High surge current capability

High energy capability

Integrated protection functions

Integrated diagnostic functions


Potential Applications — BTS5016SDA

Automotive body and convenience systems

Automotive lighting

Power distribution

Relay replacement

Fuse replacement

Heating applications

Associated Products

Model

Brand

Package

Quantity

Describe

BTS5210L

INFINEON

PG-DSO-12

4000

Power Switch/Driver 1:1 N Channel 1.8A PG-DSO-12

BTS462T

INFINEON

PG-TO252-5

5000

Power Switch IC - Distribution Smart High Side MINI-PROFET

TPS2003CDRCR

TI

VSON-10

9000

Dual-channel 2A load 4.5-5.5V, 70mΩ USB power switch

TPS2066CDR

TI

SOIC-8

8570

Dual-channel 1A load 4.5-5.5V, 70mΩ USB power switch

BTS724G

INFINEON

PG-DSO-20

50000

Power Switch IC - Distribution Intelligent High-Side Power Switch Industrial Applications

ITS4142N

INFINEON

PG-SOT223-4

22000

Power Switch IC - Distribution Smart Hi Side Switch Industrial Apps

BTS5210G

INFINEON

PG-DSO-14

10000

Power Switch/Driver 1:1 N-Channel 1.8A PG-DSO-14-37

BTH50030-1LUA

INFINEON

PG‑HSOF‑8

2000

Power Switch/Driver 1:1 N-Channel 25A PG-HSOF-8-6

BTH50015-1LUA

INFINEON

PG-HSOF-8

2000

Power Switch/Driver 1:1 N-Channel 90A PG-HSOF-8-5

TLE8108EM

INFINEON

PG-SSOP-24

5000

Power Switch IC - Power Distribution Smart 8 Ch Low Side Switch 5.5V
