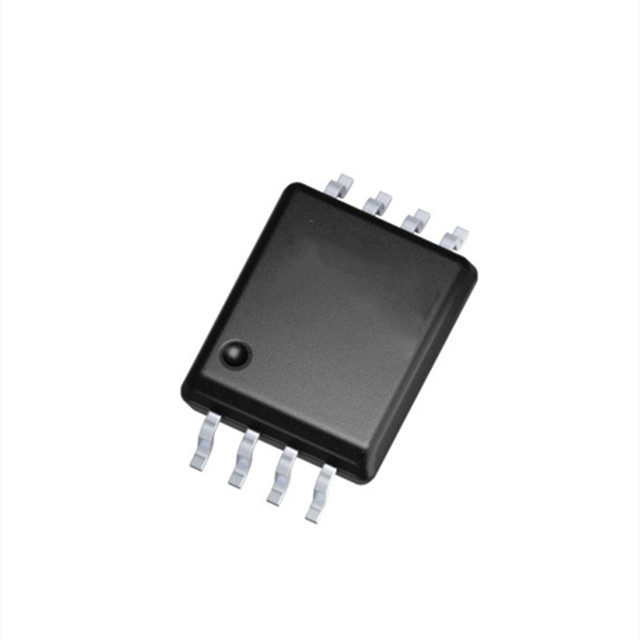

The 1EDI20I12MH single-channel EiceDRIVER™ MOSFET gate driver IC is the key to connecting control ics and powerful MOSFET and GaN switching devices. The device has a typical 4.4A pull current and 4.1A fill current and is available in a PG-DSO-8 package combined with CT (coreless transformer) technology for 600V/1200V IGBT modules.

Product Attributes:

Technology: Magnetic coupling

Number of channels: 1

Propagation delay tpLH/tpHL (maximum) : -

Pulse width distortion (Max) : -

Rise/fall time (typical value) : 10ns, 9ns

Current - Peak output: -

Voltage - Forward (Vf) (typical value) : -

Voltage output power supply: 13V ~ 18V

Operating temperature: -40°C ~ 150°C (TJ)

Mounting type: Surface mount type

Package/housing: 8-SOIC (0.295", 7.50mm wide)

Supplier device package: PG-DSO-8-59

Basic product number: 1EDI20
