The ISO7420MDR digital isolator provides current isolation up to 2500 Vrms for 1 minute per UL. The isolator has two isolation channels. Each isolated channel has a logical input and output buffer separated by a layer of silicon dioxide (SiO2) insulation. The device is used in conjunction with an isolated power supply to prevent noise current on the data bus or other circuits from entering the local ground and thus interfering with or damaging the sensitive circuit. The suffix M indicates a wide temperature range (-40 °C to 125°C).

Product attribute

Technology: capacitive coupling

Type: General

Isolated power supply: None

Number of channels: 2

Enter -Side 1/ side 2:2/0

Channel type: Unidirectional

Voltage-isolation: 2500Vrms

Common-mode transient immunity (min) : 25kV/µs

Data rate: 1Mbps

Propagation delay tpLH/tpHL (maximum) : 14ns, 14ns

Pulse width distortion (Max) : 3.7ns

Rise/fall time (typical value) : 1ns, 1ns

Voltage - power supply: 3.15V ~ 3.45V, 4.75V ~ 5.25V

Operating temperature: -40°C ~ 125°C

Mounting type: Surface mount type

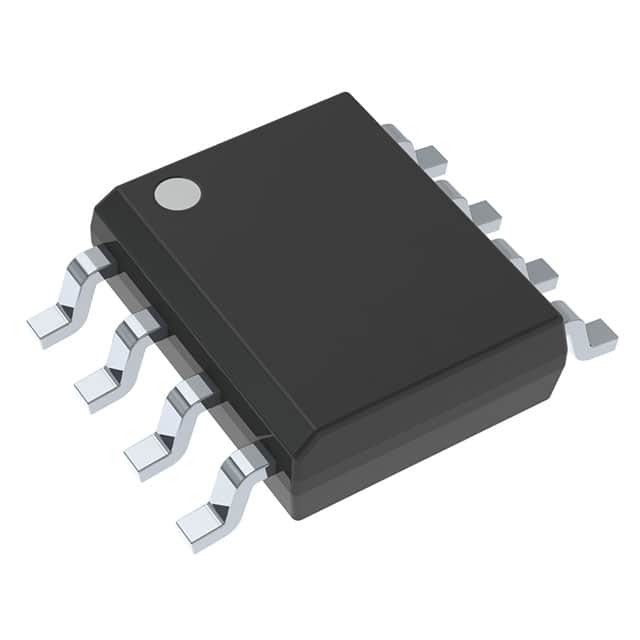

Package/housing: 8-SOIC (0.154", 3.90mm wide)

Supplier device package: 8-SOIC

Basic product number: ISO7420
