The M0G3105QRHBRQ1 is an 80MHz, 32-bit ARM® Cortex®-M0+ microcontroller IC based on the enhanced Arm Cortex-M0+ 32-bit core platform that operates at up to 80MHz. The M0G3105QRHBRQ1 provides high-performance analogue peripheral integration, supports an operating temperature range of -40°C to 125°C, and operates from a supply voltage of 1.62V to 3.6V. operating temperature range of -40°C to 125°C and operates from a 1.62V to 3.6V supply voltage.

Product Details:

Model: M0G3105QRHBRQ1

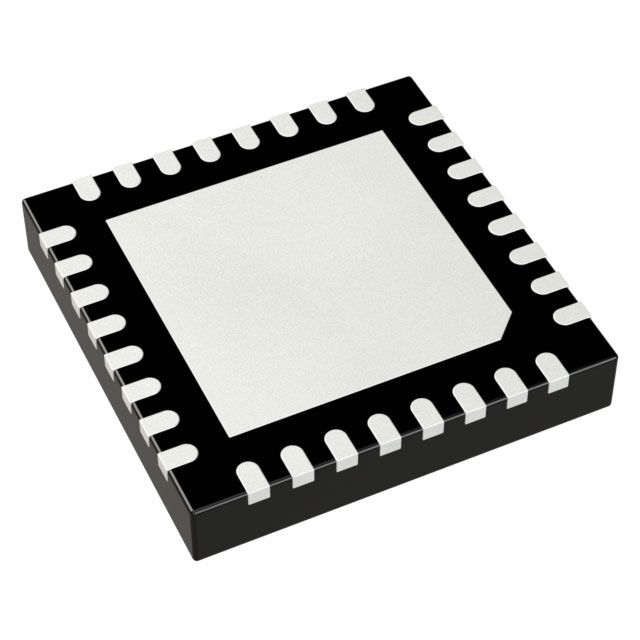

Package: VQFN-32

Type: 32-bit Microcontroller - MCU

Description: Automotive-grade 80MHz Arm® Cortex®-M0+ microcontroller IC with 32KB of flash memory, 16KB of SRAM, 2 x 12-bit 4Msps ADCs, operational amplifiers, CAN-FD, and a high performance analogue peripheral integration. FD Automotive Grade 80MHz Arm® Cortex®-M0+ MCU with 32KB Flash, 16KB SRAM, 2 12-bit 4Msps ADCs, OpAmp, CAN-FD

M0G3105QRHBRQ1 Specifications:

Core Processor: ARM® Cortex®-M0+

Core Specification: 32-bit

Speed: 80MHz

Number of I/Os: 28

Program Memory Capacity: 32KB (32K x 8)

Program Memory Type: Flash

RAM Size: 16K x 8

Voltage - Supply (Vcc/Vdd): 1.62V ~ 3.6V

Data Converter: A/D 11x12b SAR

Oscillator Type: External, Internal

Operating Temperature: -40°C ~ 125°C (TA)

Mounting Type: Surface Mount

Package/Case: 32-VQFN (5x5)

M0G3105QRHBRQ1 Product Features:

Arm 32-bit Cortex-M0+ CPU with Memory Protection Unit up to 80MHz

Operating Temperature Range: -40°C to 125°C

Wide Supply Voltage Range: 1.62V to 3.6V

Up to 128KB of Flash Memory with Built-in Error Correction Code (ECC)

Up to 32KB of SRAM with hardware parity

Two 12-bit 4Msps synchronous sampling analogue-to-digital converters (ADCs) with up to 17 external channels in total

Intelligent digital peripherals

7-channel DMA controller

Two 16-bit advanced control timers with support for dead-band insertion and fault handling

Seven timers with support for up to 22 PWM channels

Flexible I/O functions

Up to 60 GPIOs

Two 5V-tolerant IOs

Two high-drive IOs with 20mA drive strength

Optimised low-power mode

RUN: 101µA/MHz (CoreMark)

SLEEP: 487µA/4MHz

STOP: 47µA/32kHz

STANDBY: 1.5µA with RTC and SRAM retention

SHUTDOWN: 80nA with IO wake-up capability
