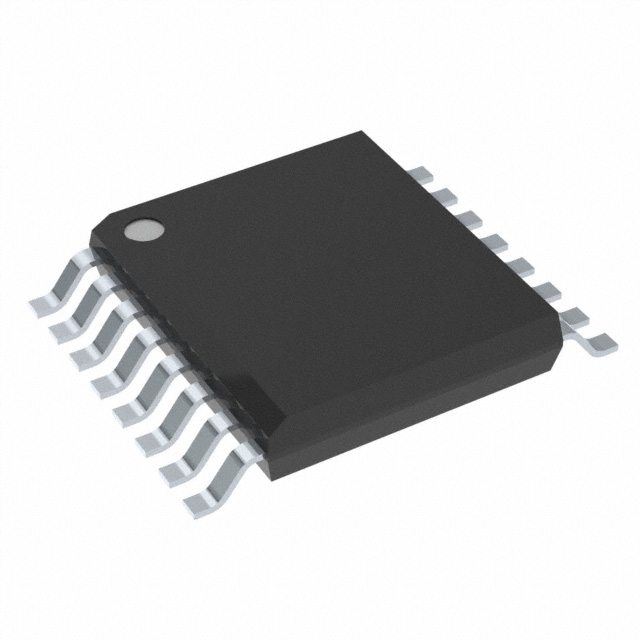

The ISO7740FQDBQRQ1 is a high-performance four-channel digital isolator available in UL 1577-compliant isolation ratings of 5700V RMS in the DWW package, 5000V RMS in the DW package, and 3000V RMS in the DBQ package. Offering high electromagnetic immunity and low radiation at low power consumption, they are also capable of isolating CMOS or LVCMOS digital I/O. The logic input and output buffers of each isolated channel are isolated by a double-capacitance silicon dioxide (SiO 2) barrier.

Product Characteristics

Technology: Capacitively Coupled

Type: General Purpose

Isolated Power Supply: None

Number of Channels: 4

Inputs - Side 1/Side 2: 4/0

Channel type: Unidirectional

Isolation voltage: 2500 Vrms

Common mode transient immunity (min): 85 kV/µs

Data rate: 100 Mbps 100 Mbps

Propagation delay tpLH / tpHL (max): 16ns, 16ns 16ns, 16ns

Pulse Width Modulation Distortion (max): 4.9ns 4.9ns

Rise / decay time (typical): 2.4ns, 2.4ns 2.4ns, 2.4ns

Voltage - Supply: 2.25V ~ 5.5V

Grade: Automotive Grade

Certification: AEC-Q100

Operating Temperature: -40°C ~ 125°C

Mounting Type: Surface Mount

Package/Housing: 16-SSOP (0.154", 3.90mm wide)

Availability: 16-SSOP

Applications

● Hybrid, electric, and powertrain systems (EV/HEV)

● Battery Management Systems (BMS)

● On-board chargers

● Traction inverters

● DC/DC converters

● Inverters and motor controls
