The ISOW7744DFMR is a galvanically isolated, four-channel digital isolator with a low-radiation, integrated, high-efficiency power converter. The integrated DC/DC converter provides up to 550mW of isolated power, eliminating the need for a separate isolated power supply in space-constrained isolated designs.

Product Features

Technology: Capacitively Coupled

Type: General Purpose

Isolated Power: Yes

Number of Channels: 4

Inputs - Side 1/Side 2: 0/4

Channel type: Unidirectional

Isolation voltage: 5000 Vrms

Common mode transient immunity (min): 85 kV/µs

Data transfer rate: 100 Mbps 100 Mbps

Propagation delay tpLH / tpHL (max): 15.7ns, 15.7ns 15.7ns, 15.7ns

Pulse Width Modulation Distortion (max): 5ns 5ns

Rise/Decay Time (typical): 2.5ns, 2.4ns 2.5ns, 2.4ns

Voltage - Supply: 2.97V ~ 3.63V, 4.5V ~ 5.5V

Operating Temperature: -40°C ~ 125°C

Mounting Type: Surface Mount

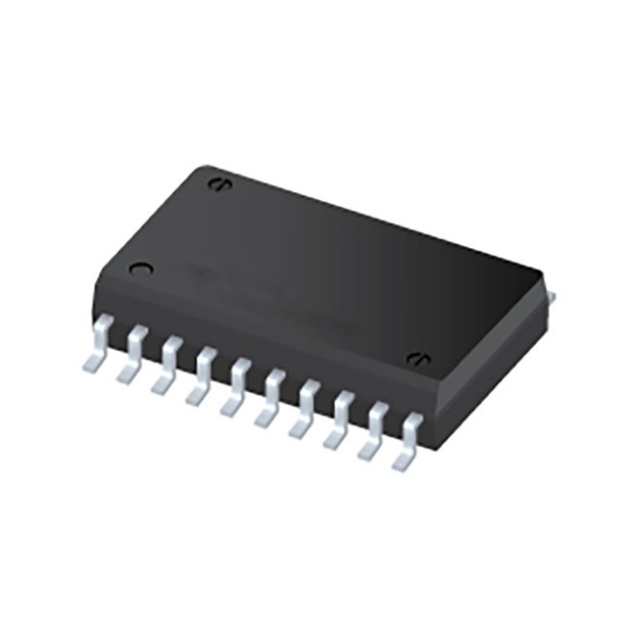

Package/Case: 20-SOIC (0.295" wide, 7.50mm)

Supplier Device Package: 20-SOIC

Applications

● Factory automation

● Motor control

● Grid infrastructure

● Medical devices

● Test and Measurement
