Service Telephone:86-755-83294757
Trade Name:TRF1208RPVT
Data Manual:TRF1208RPVT.pdf
Brand:TI
Particular Year:23+

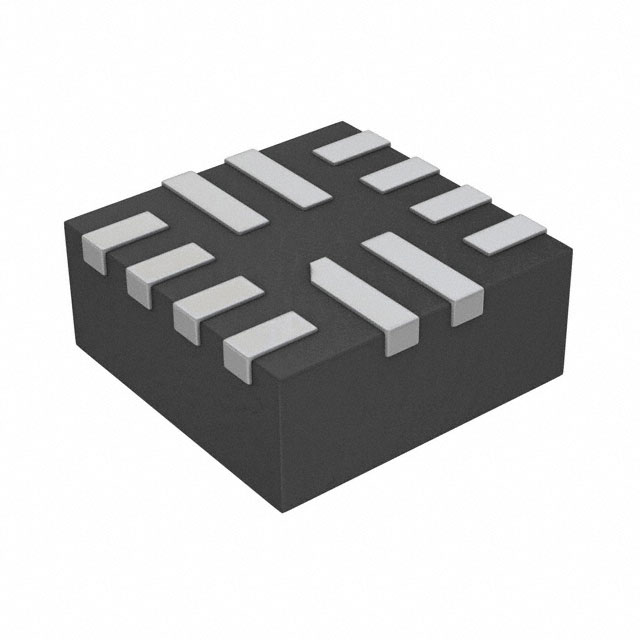

Package:WQFN-12
Delivery Date:New and Original
Stock: 1000pcs
The TRF1208RPVT is an ultra-high performance RF amplifier optimized for radio frequency (RF) applications. It is ideal for AC-coupled applications requiring single-ended to differential conversion when driving analog-to-digital converters (ADCs) such as the high-performance ADC12DJ5200RF. The on-chip matching element simplifies the printed circuit board (PCB) implementation and provides the highest performance within the available bandwidth. The device is fabricated using Texas Instruments' (TI) advanced complementary BiCMOS process and is available in a space-saving WQFN-FCRLF package.
The TRF1208RPVT is powered by a single-rail supply and consumes approximately 138mA of operating current. A power-down feature also contributes to energy savings.
Features
- Excellent performance for driving RF ADCs
- Single-ended to differential
- Differential to differential
- Two fixed gain variants:
- 16dB (TRF1208)
- 10dB (TRF1208B)
- Bandwidth:
- TRF1208: 8GHz (1dB), 11GHz (3dB)
- TRF1208B: 8.8GHz (1dB), 10.5GHz (3dB)
- OIP3:
- TRF1208: 37dBm (2GHz), 32dBm (6GHz)
- TRF1208B: 36dBm (2GHz), 28dBm (6GHz)
- P1dB:
- TRF1208: 15dBm (2GHz), 12.5dBm (6GHz)
- TRF1208B: 14dBm (2GHz), 11dBm (6GHz)
- Noise figure:
- TRF1208: 7dB (2GHz), 7dB (8GHz)
- TRF1208B: 9.4dB (2GHz), 10.2dB (8GHz)
- Output noise spectral density (NSD), dBm/Hz:
- TRF1208: -151 (2GHz), -151 (8GHz)
- TRF1208B: -154.6 (2GHz), -153.8 (8GHz)
- Gain and phase imbalance: ±0.3dB and ±3º
- Shutdown Characteristics
- 3.3V single supply operation
- Operating current: 138mA
Applications
- RF sampling or GSPS ADC drivers
- Aerospace and Defense
- Radar guide head front-ends
- Phased array radar
- Military Radio
- Test and Measurement
- High Speed Digitizers
- Vector Signal Transceiver (VST)
- 4G/5G Wireless BTS
- RF Active Balanced-Unbalanced Transformers
