The ADRF6521ACPZ is a dual, fully differential, low noise, low distortion variable gain amplifier (VGA). The VGA has a high spurious-free dynamic range over the gain range, making it ideally suited for communications systems with high-density constellations. the VGA has an attenuation range of 21 dB and a typical voltage gain of 18 dB. the differential input impedance is 100 Ω, the differential output impedance is 16 Ω, and the bandwidth is 2.5 GHz. the output buffer is capable of switching from a 1.5 V p-p to a 100 Ω load, and the second- and third-order intermodulation distortions (>55 dBc). 55 dBc). Second- and third-order intermodulation distortion (IMD2 and IMD3) as well as second- and third-harmonic distortion (HD2 and HD3) from low frequencies to 1 GHz.

Product Attributes

Frequency: 3 GHz

Gain: 18dB

Noise Figure: 34.3dB

RF Type: General Purpose

Voltage - Supply: 4V ~ 5V

Current - Supply: 200mA

Mounting Type: Surface Mount

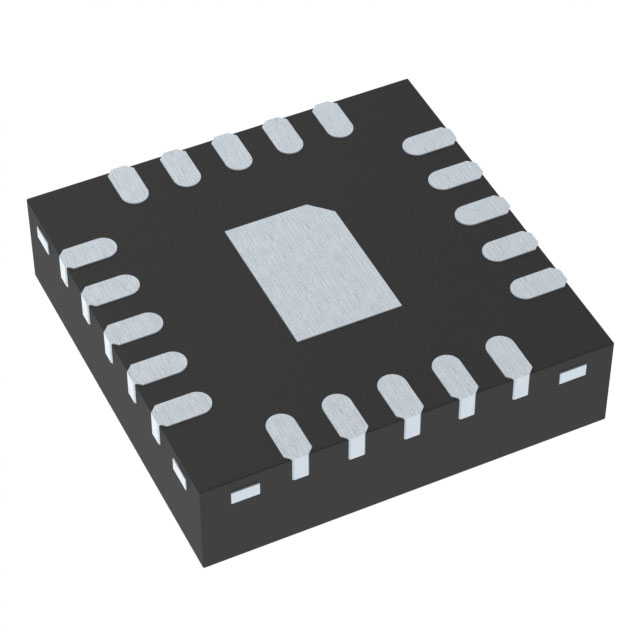

Package/Shell: 20-WFQFN Exposed Pad, CSP

Supplier Device Package: 20-LFCSP (3x3)

Applications

● Point-to-point and point-to-multipoint radios

● Baseband IQ receivers

● Diversity receivers

● Analogue-to-digital converter drivers

● Instrumentation

● Medical
