The LT6658AHDE-5 is a high-precision, dual-output, low-noise voltage reference chip belonging to the ‘Refulator™’ series. This chip combines the precision of a reference voltage source with the drive capability of a linear regulator, making it suitable for applications such as high-precision analogue circuits, data acquisition systems, and power management.

LT6658AHDE-5 Product Features

Dual outputs: Each output can be configured for up to 6V.

High Precision: Grade A accuracy is ±0.05% (maximum), and Grade B accuracy is ±0.1% (maximum).

Low Temperature Drift: Grade A is 10ppm/°C (maximum), and Grade B is 20ppm/°C (maximum).

Low Noise: Noise from 0.1Hz to 10Hz is 1.5ppmP-P.

Wide Operating Voltage Range: Input voltage range is 5V to 36V.

High Load Capacity: Output 1 supports 150mA source current and 20mA sink current, Output 2 supports 50mA source current and 20mA sink current.

High power supply rejection ratio: AC PSRR is 96dB at 10kHz.

Thermal shutdown protection: Built-in thermal shutdown function ensures safe operation under overheating conditions.

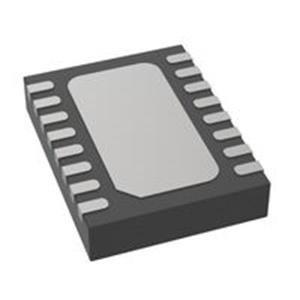

Package type: Uses a 16-pin DFN (4mm x 3mm with exposed pad) package.

LT6658AHDE-5 Specifications

Input voltage range: 5.2V to 36V

Output voltage: 5V (fixed) or 2.5V to 6V (adjustable)

Output current: Output 1: 150mA (source)/20mA (sink); Output 2: 50mA (source)/20mA (sink)

Accuracy: ±0.05% (Grade A)

Temperature coefficient: 10ppm/°C (maximum)

Noise: 2.2ppm p-p (0.1Hz to 10Hz), 2ppm rms (10Hz to 10kHz)

Package: 16-DFN-EP (4×3mm)

Operating temperature: -40°C to +125°C (TJ)

LT6658AHDE-5 Typical Applications

High-precision data acquisition systems (e.g., industrial sensors, medical equipment)

Automotive electronics (ECU power management, in-vehicle infotainment systems)

Industrial power management (proportional power rails, dual-output tracking regulators)

Low-noise analogue circuits (precision instruments, test and measurement equipment)
