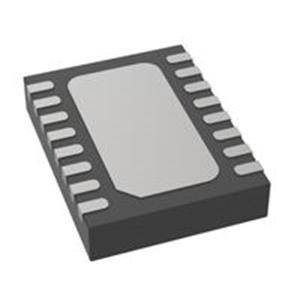

For picture reference, please see the specifications
< >

Commodity Model:LT6658AHDE-3.3

Trade Name:Voltage Reference

Brand:ADI

Particular Year:25+

Package:DFN-16

Delivery Date:New and Original

Stock: 5000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
ADI
Model
LT6658AHDE-3.3
Package
DFN-16
Describe
Precise, dual-output, high-current, low-noise voltage reference

Product Description

The LT6658AHDE-3.3 Precision Reference Voltage Source is a dual-output reference voltage source that combines low drift, low noise reference voltage source, and linear regulator performance. The LT6658AHDE-3.3 reference voltage source includes two high-current output buffers. Designers can configure each output to any voltage between 2.5V and 6V. The two outputs track each other across the entire temperature and load range. At a load current of up to 150mA, the typical load regulation is 0.1ppm/mA.


At frequencies from 0.1Hz to 10Hz, both outputs provide 0.05% initial accuracy, 10ppm/°C temperature drift, and 1.5ppm noise. These outputs offer excellent power supply rejection performance, achieving stability when using capacitors ranging from 1μF to 50μF across a wide operating range.


LT6658AHDE-3.3 Product Attributes

Reference Type: Series, Dual Output

Output Type: Adjustable (Fixed)

Voltage - Output (Minimum/Fixed): 3.3V

Voltage - Output (Maximum): 6 V

Current - Output: 150 mA

Tolerance: ±0.05%

Temperature Coefficient: 10ppm/°C

Noise - 0.1Hz to 10Hz: 1.7ppmp-p

Noise - 10Hz to 10Hz: 2ppmrms

Voltage - Input: 4.5V to 36V

Current - Supply: 3mA

Operating Temperature: -40°C to 125°C (TJ)

Mounting Type: Surface Mount

Package/Case: 16-WFDFN Bare Pad

Supplier Device Package: 16-DFN (4x3)


Application Scenarios

The LT6658AHDE-3.3 is suitable for various high-precision, low-noise applications, including:

Microcontroller or FPGA with ADC/DAC applications: Provides a stable reference voltage for microcontrollers and high-resolution ADC/DACs.

Data acquisition systems: In applications requiring high-precision voltage references, such as industrial automation and medical equipment.

Automotive control and monitoring: Suitable for automotive electronic systems, providing high reliability and high-precision voltage references.

Precision low-noise voltage regulators: Used in instruments and process control systems requiring low-noise power supplies.
