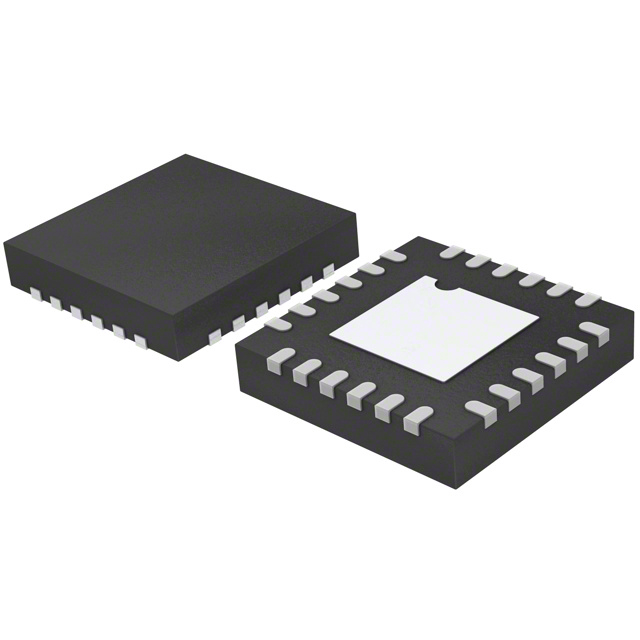

ADA4961ACPZN is a high performance, BiCMOS RF digital gain amplifier (DGA), optimized for driving heavy loads out to 2.0 GHz and beyond. The device typically achieves −90 dBc IMD3 performance at 500 MHz and −85 dBc at 1.5 GHz.

Product Features

High speed

−3 dB bandwidth: 3.2 GHz

−1 dB bandwidth: 1.8 GHz

Slew rate: 12,000 V/μs

Digitally adjustable gain

Voltage gain: −6 dB to +15 dB

Power gain: −3 dB to +18 dB

5-bit parallel or SPI bus gain control with fast attack

Low noise

Noise density referred to output (RTO): −154 dBm/Hz

Noise figure: 5.5 dB at AV = 15 dB, 1 GHz

Differential impedances: 100 Ω input, 50 Ω output

Low power mode operation, power-down control

Single 3.3 V or 5 V supply operation

Available in 24-lead, 4 mm × 4 mm LFCSP

Applications

ADC driver for 10-bit to 14-bit GSPS converters

RF/IF gain blocks

Line drivers

Instrumentation

Satellite communications

Data acquisition

Military systems
