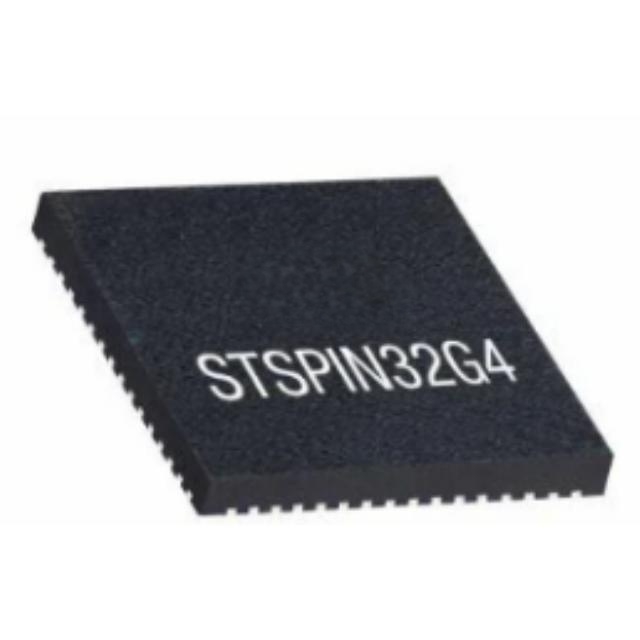

The STSPIN32G4 is a highly integrated and flexible motor controller for driving three-phase brushless motors. The device helps designers to select the most suitable drive mode, reducing PCB area and overall bill of materials.STSPIN32G4 embeds three half-bridge gate drivers capable of driving power MOSFETs with a current capability of 1A (pull and sink current). Three bootstrap diodes are also embedded. Thanks to the integrated interlocking feature, it is not possible to drive both high-side and low-side switches of the same half-bridge at the same time. Another protection feature is a hardware VDS monitoring circuit that continuously monitors each of the six external MOSFETs. When an overvoltage is detected on one of them, it shuts down all gate driver outputs. The overvoltage threshold is set via the dedicated SCREF pin.

Characteristics

• Motor supply voltage: 5.5V to 75V

• Three-phase gate driver

• Sink/pull current capability: 1A

• VDS monitoring of power stage MOSFETs

• Integrated bootstrap diode

• I2C-accessible configuration and status registers best matched to the application

• Anti-Transconductance

• CORDIC maths hardware accelerator for trigonometry

• 128kB Flash Memory with Proprietary Code Readout Protection (PCROP), Secure Memory Area, 1kB OTP

• 32KB SRAM memory with HW parity check

• Two Advanced Timers for Motor Control, 16-bit with up to 6 PWM Channels

• Eight general purpose timers

• Two ADCs, 12 resolution (up to 19 channels) with 4Msps conversion rate

Applications

• Industrial and home automation

• Household appliances such as hoovers, dryers and cleaning robots

• Servo drives and e-bikes

• Service and automation robots

• Power and garden tools

• Pumps and fans

• Drones and aeromodelling
