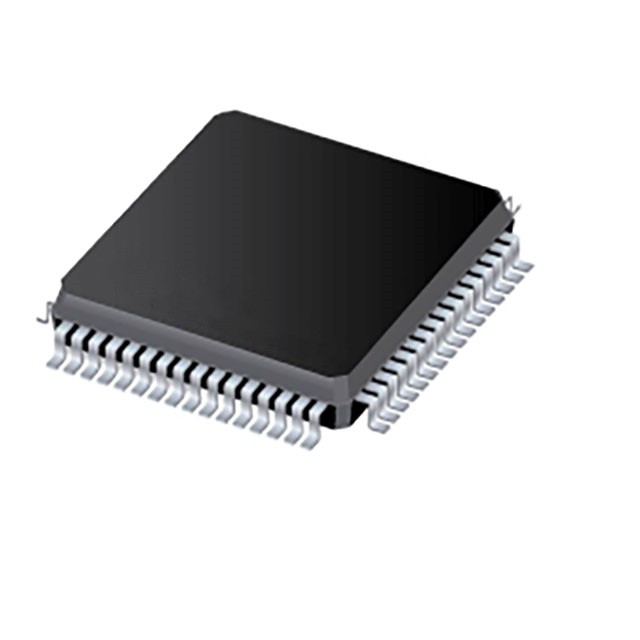

The DRV3256AEPAPRQ1 devices are highly integrated three-phase gate drivers for 48V automotive motor drive applications. These devices are specifically designed to support high power motor drive applications by providing 2A peak pull current and 2.5A peak sink current (gate drive) as well as 90V MOSFET transient overvoltage support. The use of a highly efficient bootstrap architecture fully reduces the gate driver's power loss and self-heating. A charge pump enables the gate driver to support 100% PWM duty cycle control.

Features

- Complies with AEC-Q100 for automotive applications:

- Device Ambient Temperature Class 0: -40°C to +150°C

- Device HBM ESD Classification 2

- Device CDM ESD Classification C4B

- Targeted compliance with functional safety standards

- Developed for functional safety applications

- Documentation to assist in ISO26262 system design will be provided with production release

- System meets ASIL D level requirements

- 3 N-Channel Half Bridge Gate Drivers

- 2A/2.5A maximum peak gate drive current

- Power architecture optimised for 48V applications

- Dual 12V/48V power architecture

- DC link power supply (DHCP) transient absolute maximum rating of 95V

- 105V bootstrap voltage to support 90V MOSFET operating voltage range

- Bootstrap charge pump supports 100% duty cycle

- Integrated 1 (DRV3256A-Q1) current shunt amplifier

- Integrated configurable active short circuit (ASC) function

- Low Side (DRV3256A-Q1)

- Low-side and high-side ASC support

- Provides device pin control

- Fault handling capability

- Serial Peripheral Interface (SPI) with CRC function

- Supports 3.3V and 5V logic inputs

- Advanced Protection Features

- Battery voltage monitor

- MOSFET VDS overcurrent monitor

- Rshunt overcurrent monitor

- MOSFET VGS gate fault monitor

- Analogue built-in self-test

- Internal Voltage Regulator and Clock Monitor

- Device thermal warning and thermal shutdown

- Fault Status Indicator Pins

Applications

- Automotive 48V motor drive systems

- Belt and integrated starter generators and electric generators

- Electric power steering

- eTurbo and eBooster

- Transmission control and drives

- Oil, transmission and water pumps

- HVAC compressors and fans
