DAC7760IRHAR: Single-Channel, 12-Bit Digital-to-Analogue Converter (DAC), VQFN-40

Here are the product details for the digital-to-analogue converter DAC7760IRHAR:

Model: DAC7760IRHAR

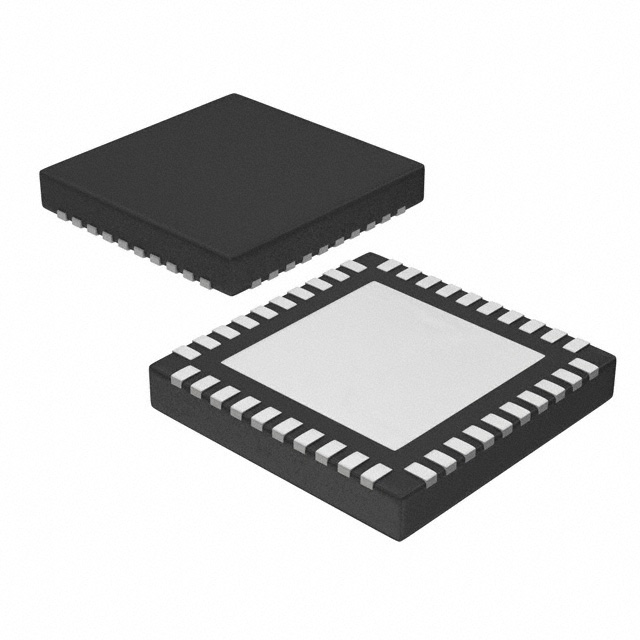

Package: VQFN-40

Type: Digital-to-Analogue Converter (DAC)

Overview:

The DAC7760IRHAR is a 12-bit, single-channel, programmable current/voltage output digital-to-analogue converter (DAC) for 4mA to 20mA current loop applications. The device is programmable to provide a current output with a range of 4-20mA, 0-20mA, or 0-24mA, or as a voltage output with a range of 0V to 5V, 0V to 10V, ±5V, or ±10V, up to 10% over the range (0V to 5.5V, 0V to 11V, ±5.5V, or ±11V). The current and voltage outputs can be enabled simultaneously and are controlled by the same data register.

DAC7760IRHAR Specifications:

Number of Bits: 12

Number of Digital-to-Analogue Converters: 1

Build-up Time: 25µs (Typical)

Output Type: Voltage or Current - Buffered

Differential Outputs: None

Data Interfaces: SPI, DSP

Reference Types: External, Internal

Voltage - Supplied, Analogue: 10V ~ 36V, -18V

Voltage - Supplied, Digital. Digital: 2.7V ~ 5.5V

INL/DNL (LSB): -, ±1 (max)

Architecture: Resistor String DAC

Operating Temperature: -40°C ~ 125°C

Package/Case: 40-VFQFN Unpadded

Supplier Device Package: 40-VQFN (6x6)
