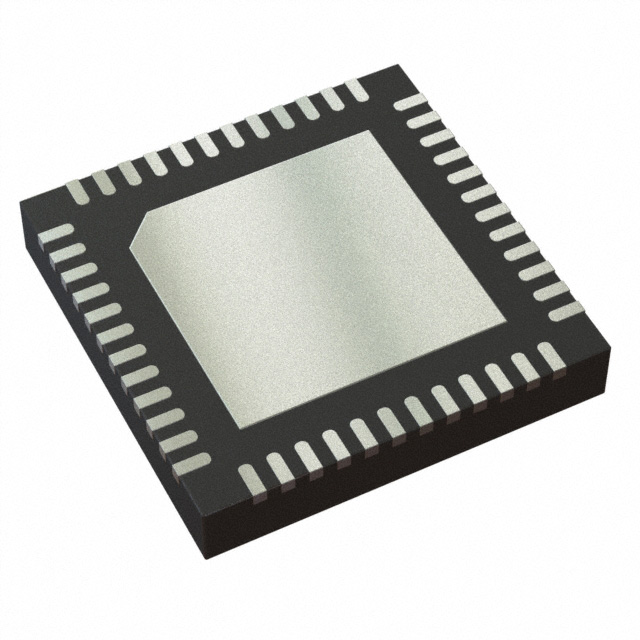

The DAC5652AIRSLR is a monolithic dual 10-bit high-speed digital-to-analogue converter (DAC) with an on-chip voltage reference. The device features two 10-bit parallel input ports with separate clock and data latches. For flexibility, the DAC5652A can also transmit multiplexed data from two DACs through one port when operating in interleaved mode.

Product Details:

Model: DAC5652AIRSLR

Package: VQFN-48

Type: Digital-to-Analogue Converter (DAC)

Number of Bits: 10

Number of Digital-to-Analogue Converters: 2

Build-up Time: 20ns (Typical)

Output Type: Current - Unbuffered

Differential Output: Yes

Data Interface: Parallel

Reference Type: External, Internal

Voltage - Powered, Analogue: 3V ~ 3.6V

Voltage - Powered, Digital: 3V ~ 3.6V

INL/DNL (LSB): ±0.25, ±0.16

Architecture: Current Sourced

Operating Temperature: -40°C ~ 85°C

Package/Housing: 48-VFQFN Unpadded

Vendor Device Packages: 48-VQFN (6x6)

Mounting Type: Surface Mount

DAC5652AIRSLR Product Features:

10-bit Dual Transmit DAC

275MSPS update rate

Single supply: 3.0V to 3.6V

High Spurious Free Dynamic Range (SFDR): 80dBc at 5MHz

High Third Order Dual Tone Intermodulation (IMD3): 78dBc at 15.1MHz and 16.1MHz

Independent or single resistor gain control

Dual or interleaved Data

1.2V on-chip reference voltage

Low power consumption: 290mW

Power-down mode: 9mW
