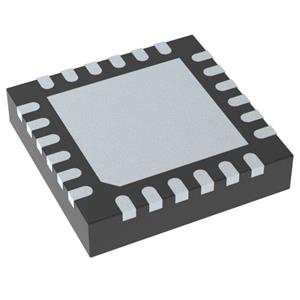

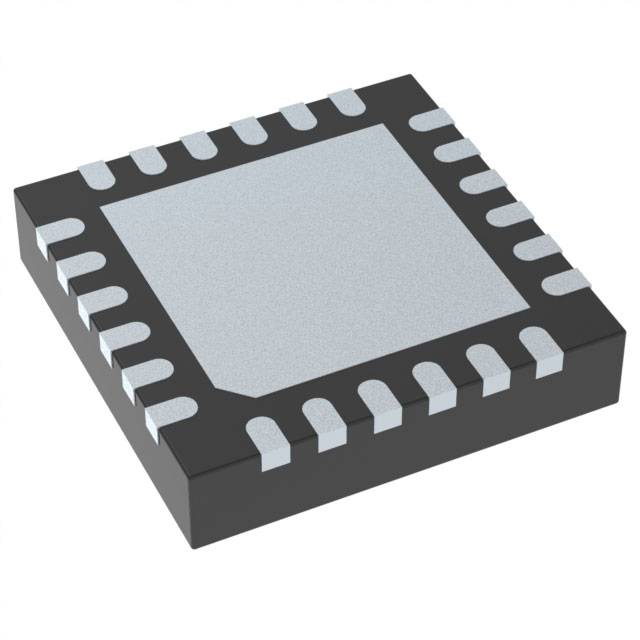

[TI] LMH6881SQ Programmable Differential Amplifier with Gain Control for 2.4GHz Applications

The LMH6881SQ is a high-speed, high-performance, programmable differential amplifier. Featuring a bandwidth of 2.4GHz and high linearity with 44dBm OIP3, this device is suitable for a wide range of signal conditioning applications.

The LMH6881SQ programmable differential amplifier seamlessly combines the advantages of a fully differential amplifier with those of a variable gain amplifier. This device delivers excellent noise and distortion performance across its entire gain range without requiring external resistors, enabling a single device and design to satisfy multiple applications requiring different gain settings.

LMH6881SQ Product Features:

Small-signal bandwidth: 2400MHz

OIP3 at 100MHz: 44dBm

HD3 at 100MHz: -100dBc

Noise figure: 9.7dB

Voltage gain range: 6dB to 26dB

Voltage gain step size: 0.25dB

Input impedance: 100Ω

Parallel and serial gain control

Power-down function

LMH6881SQ Applications:

Oscilloscope front ends

Spectrum analyser gain blocks

Differential analogue-to-digital converter (ADC) drivers

Differential cable drivers

Intermediate frequency (IF)/radio frequency (RF) and baseband gain blocks

Medical imaging
