The ADA4960-1ACPZ is a high-performance differential amplifier that has been optimized for RF and mid-frequency applications. At a maximum frequency of 500 MHz, the spurious dynamic range (SFDR) is better than 63 dB. At a maximum frequency of 1 GHz, SFDR outperforms 52 dB, making it an ideal driver for high-speed 8-bit to 10-bit gigabit sampling analog-to-digital converters (ADCs).

Unlike other wideband differential amplifiers, the ADA4960-1ACPZ features a buffered input that can isolate the gain setting resistor (RG) from the signal input. Therefore, for gains ranging from 6 dB to 15 dB, the ADA4960-1ACPZ can maintain a constant 10 kΩ differential input resistance, thereby reducing the requirements for matching and input drive. This device has a differential output resistor with a nominal value of 150 Ω.

Its main features include:

Adjustable output common-mode voltage

External adjustable gain

-3 dB bandwidth: 3GHz (all gains)

Low harmonic distortion (H2/H3 SE->DIFF)

-77/-67 dBc (250 MHz)

-69/-63 dBc (500 MHz)

-52/-63 dBc (1GHz)

IMD3:67 dBc (1 GHz)

Pressure swing rate: 8000 V/μs

Fast overdrive recovery: 1 ns

Low input voltage noise: 3.6 nV/√Hz

Low power consumption: Static current 60 mA

0.1 dB gain flatness: To be determined

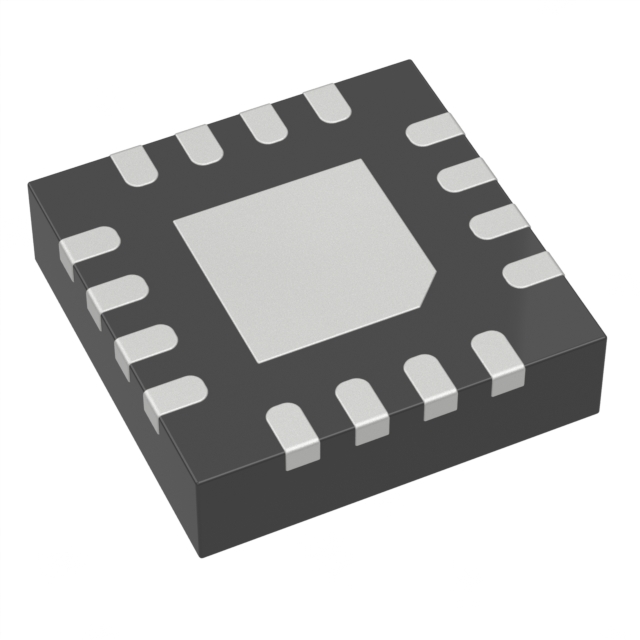

It adopts a 16-pin LFCSP package

Application field

The ADA4960-1ACPZ is widely used in various mid-frequency and wideband applications that require low distortion, low noise and low power consumption, including:

Driver of gigabit sampling ADC

Single-ended differential converter

Rf/intermediate frequency gain module

Line driver

Oscilloscope

Satellite communication

Data collection

Electronic monitoring and countermeasures
