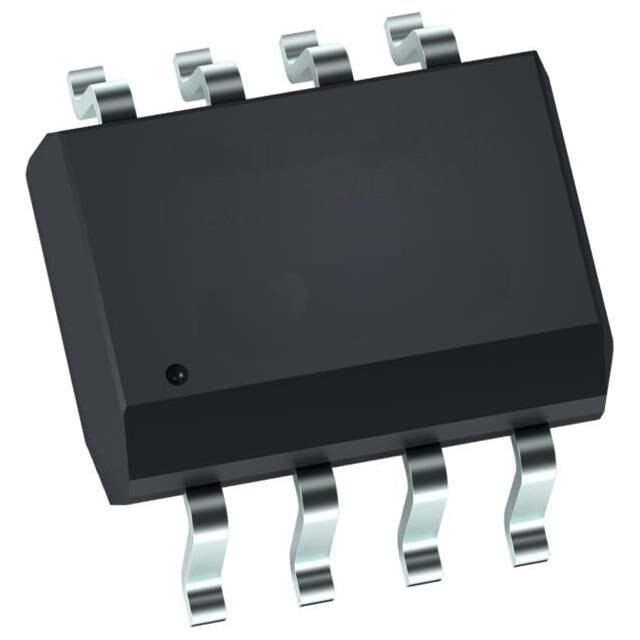

The AD629ARZ is a precision differential amplifier with an extremely high input common-mode voltage range, capable of precisely measuring differential signals at a high common-mode voltage of up to ± 270V.

In applications where current isolation is not required, the AD629ARZ can replace expensive isolated amplifiers. This device operates within the ± 270V common-mode voltage range and provides up to ± 500V common-mode or differential mode transient protection for the input.

Typical applications of AD629ARZ include:

High-voltage current detection

Battery cell voltage monitor

Power supply current monitor

Motor control

Isolation

In addition, the AD629ARZ also features the following main characteristics

Improved alternative products of INA117P and INA117KU

Common-mode voltage range: ±270 V

Input protection

±500 V common mode

±500 V differential mode

Wide power supply range (± 2.5V to ± 8V)

± 10V output swing (± 12V power supply)

Maximum power supply current of 1 mA

High-precision DC performance

Gain nonlinearity: 3 ppm (maximum value, AD629B)

Offset drift: 20 µV/°C (maximum, AD629A)

Offset drift: 10 µV/°C (maximum, AD629B)

Gain drift: 10 ppm/°C(maximum value)

Excellent communication characteristics

CMRR: 77 dB(minimum value, 500 Hz, AD629A)

CMRR: 86 dB(minimum value, 500 Hz, AD629B)

Bandwidth: 500 kHz
