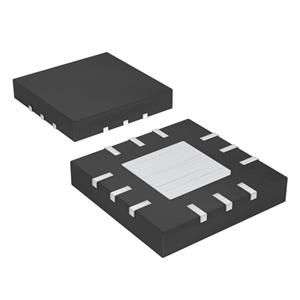

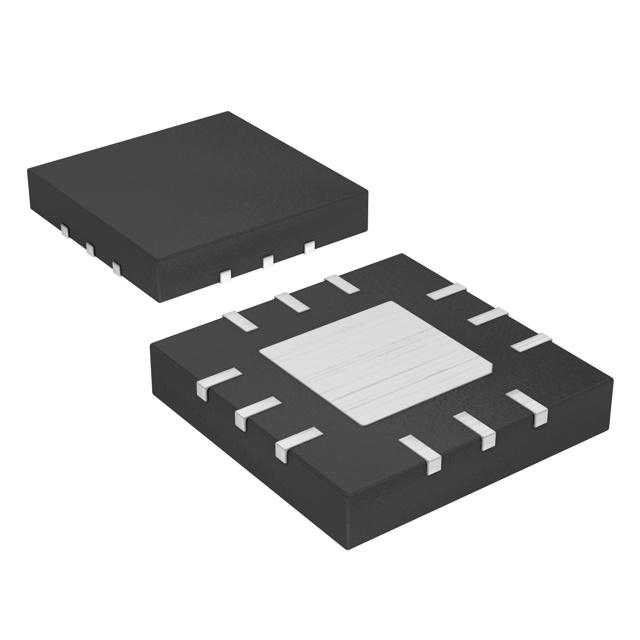

The MAX9627ATC is a 1.35GHz fully differential amplifier, featuring a small size, 3mm x 3mm, 12-pin TQFN package. It boasts excellent low input noise and low distortion characteristics, making it particularly suitable for driving high-speed 12-bit to 16-bit pipeline ADCs. The output common-mode voltage of the MAX9627ATC is set through the VOCM input pin without the need for a coupling transformer or AC coupling capacitor. The IC has an off mode to save power consumption.

Main characteristics

The noise density of low voltage is 3.6nV/

Low harmonic distortion

At 10MHz, HD2/HD3 is -102/-105dB

At 125MHz, HD2/HD3 is -86/-80dB

The factory sets gain options: 1V/V, 2V/V and 4V/V

1.35GHz small-signal bandwidth

Adjustable output common-mode voltage

Differential to differential or single-ended to differential operation

25µA turn-off current

Single power supply ranging from +2.85V to +5.25V

Small size, 3mm x 3mm, 12-pin TQFN package

Application field

The MAX9627ATC is suitable for various applications that require high-precision and high-speed signal processing, including:

ATE

Communication

High-performance usage instrument

Medical imaging
